Fuel Sub Level Sensor: Removal

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
  1. Disconnect the ground cable from battery.

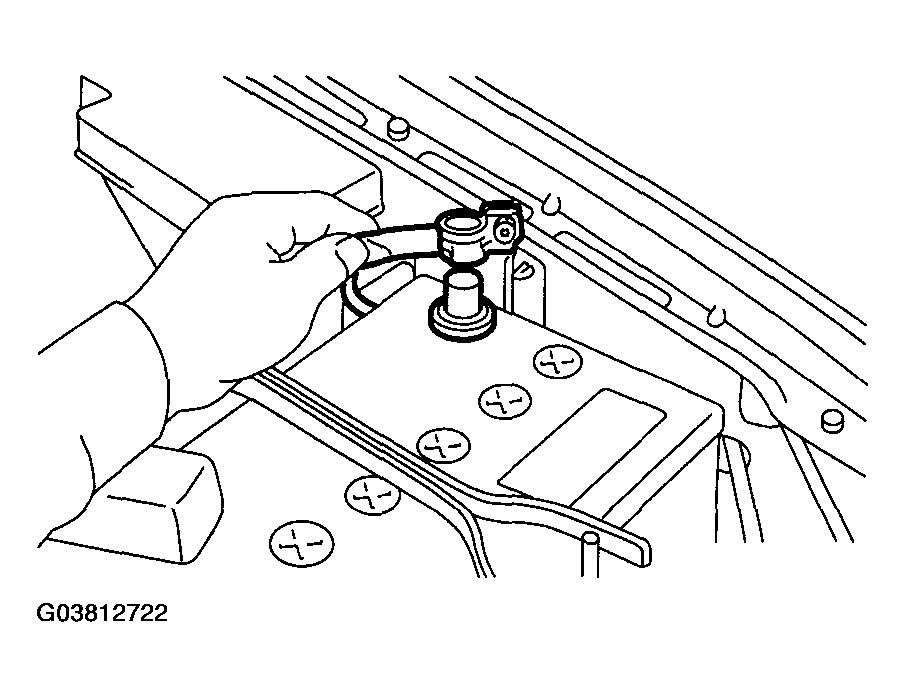

    Fig 1: Disconnecting Ground Cable From Battery
    G03812722Courtesy of SUBARU OF AMERICA, INC.
  2. Lift up the vehicle.
  3. Drain the fuel from the fuel tank. < Ref. to , DRAINING FUEL , PROCEDURE , Fuel. >
  4. Remove the rear seat.
  5. Remove the service hole cover.
    Fig 2: Removing Service Hole Cover
    G03812723Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the connector from the fuel sub level sensor.
  7. Disconnect the fuel jet pump hose.

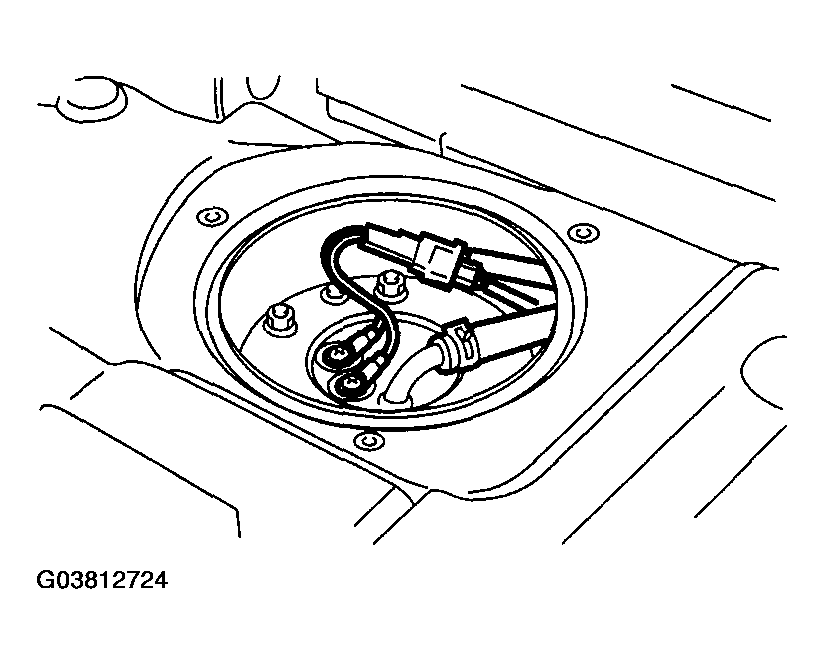

    Fig 3: Disconnecting Connector From Fuel Sub Level Sensor
    G03812724Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the bolts which install the fuel sub level sensor on the fuel tank.

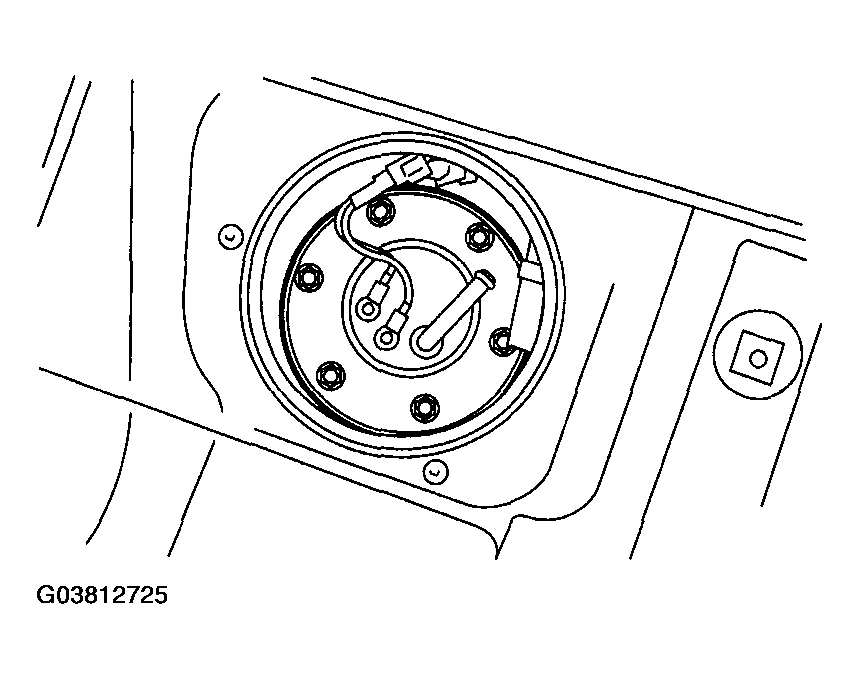

    Fig 4: Removing Fuel Sub Level Sensor Bolt
    G03812725Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the fuel sub level sensor.
    Fig 5: Removing Fuel Sub Level Sensor
    G03812726Courtesy of SUBARU OF AMERICA, INC.
