Fuel Line

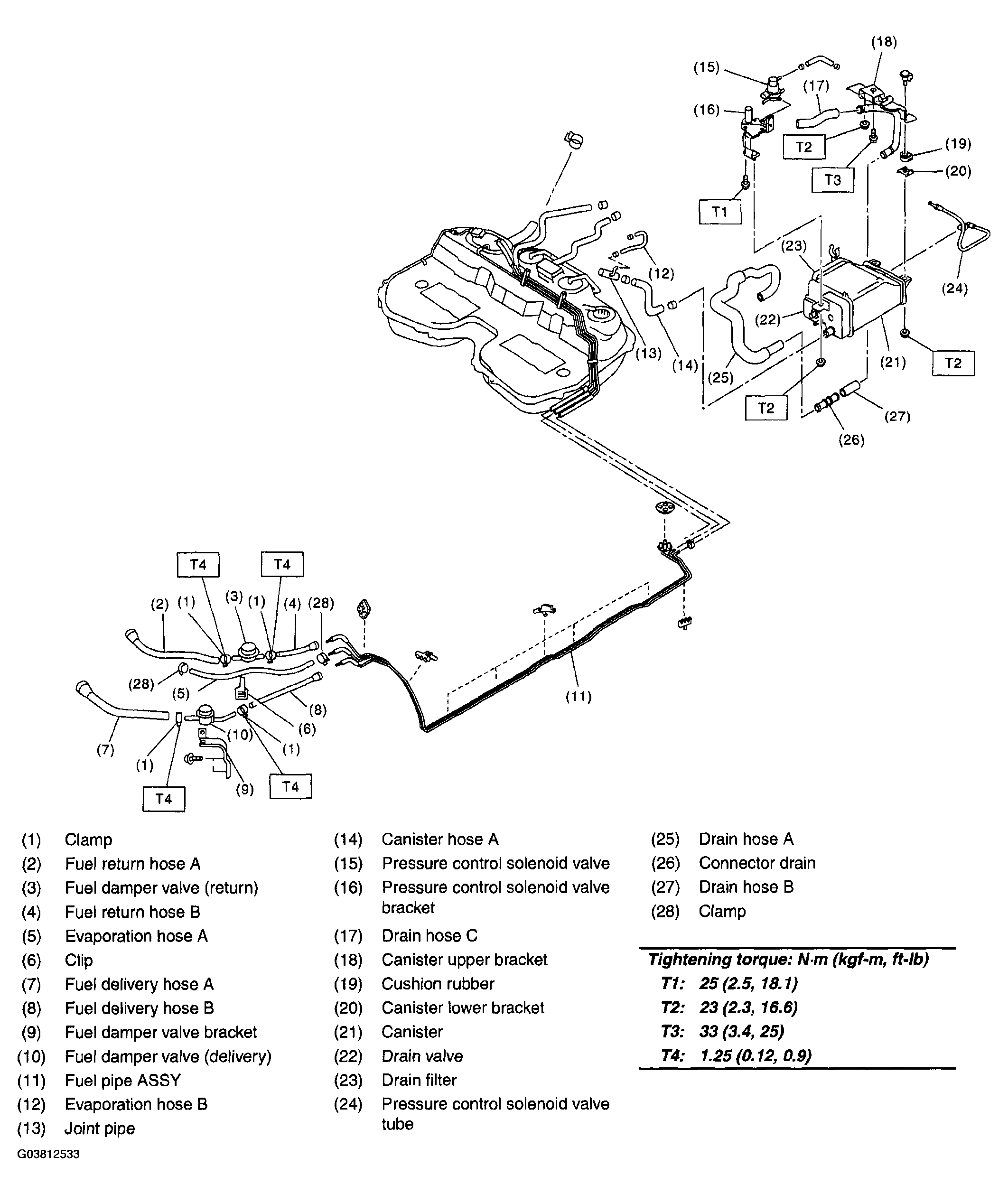

Fig 1: Exploded View Of Fuel Line And Tightening Torques
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
