Accelerator Pedal: Disassembly

Remove the clip, and then remove the accelerator pedal lever from bracket.
Pull out the spring pin, and then remove the accelerator pedal from accelerator pedal lever.

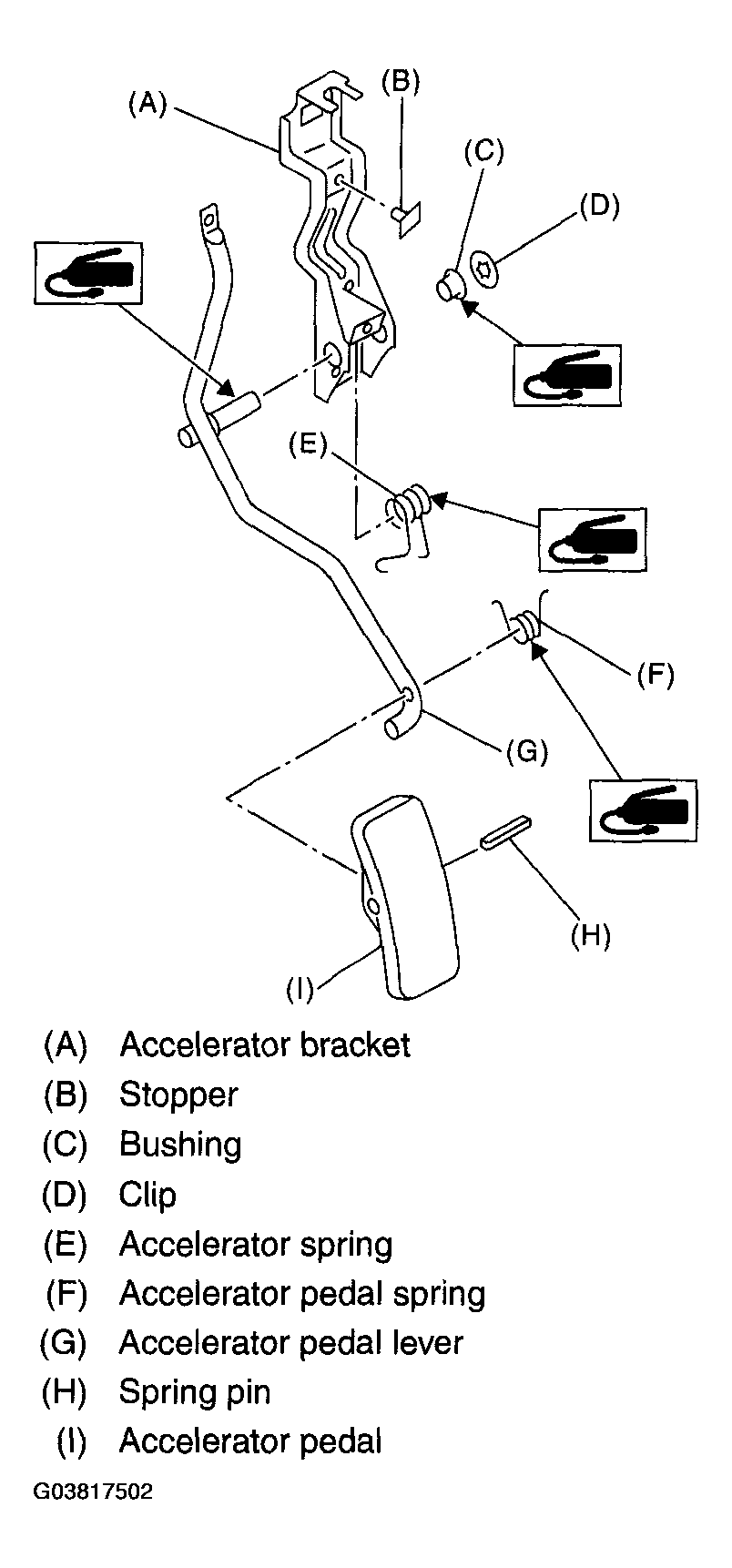

Fig 1: Removing Accelerator Pedal From Accelerator Pedal Lever
Courtesy of SUBARU OF AMERICA, INC.
