Components With Torque Specifications

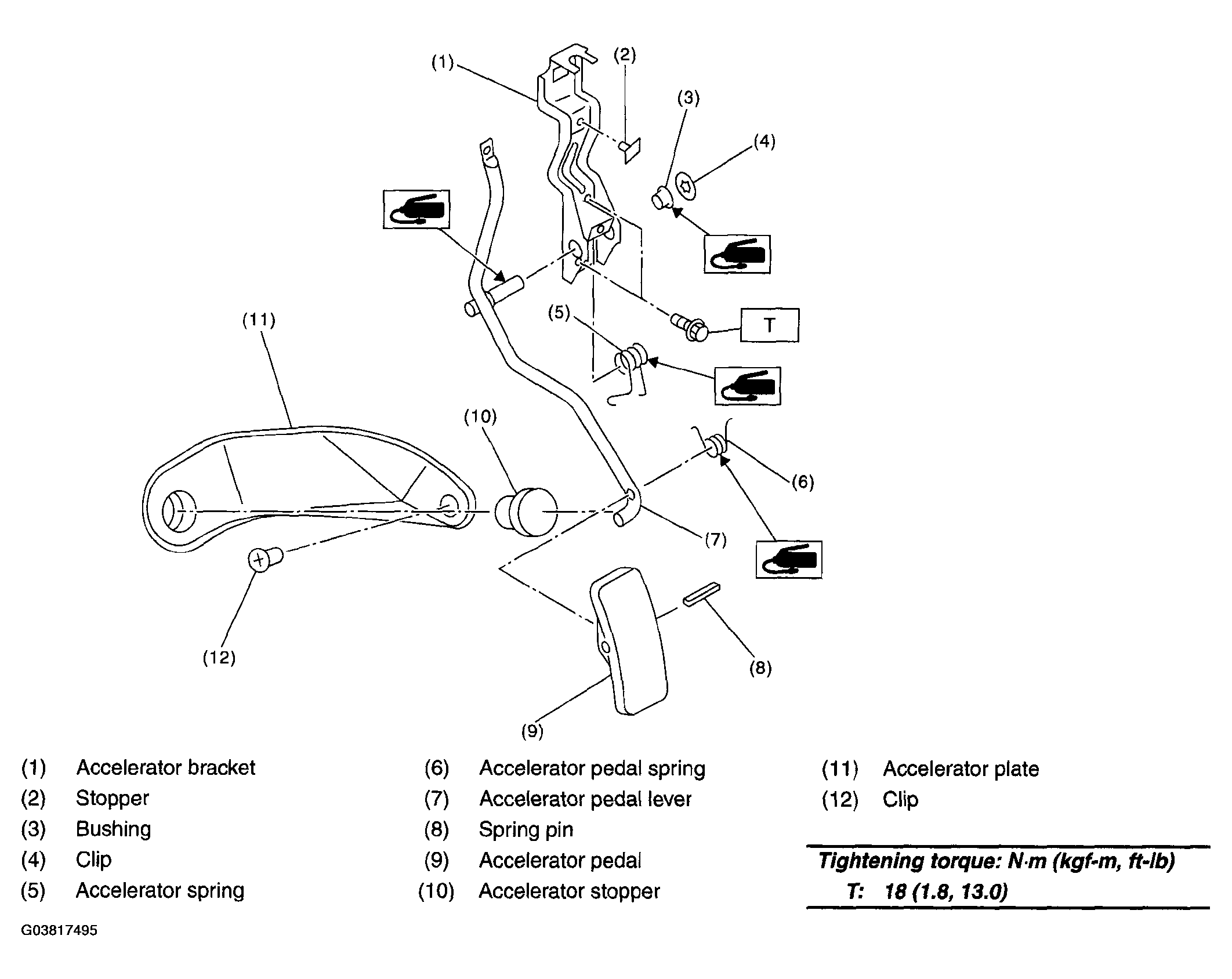

Fig 1: Exploded View Of Speed Control Systems With Torque Specifications
G03817495Courtesy of SUBARU OF AMERICA, INC.
