Home >> Subaru >> 2005 >> Legacy F6-3.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly >> System Diagram

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

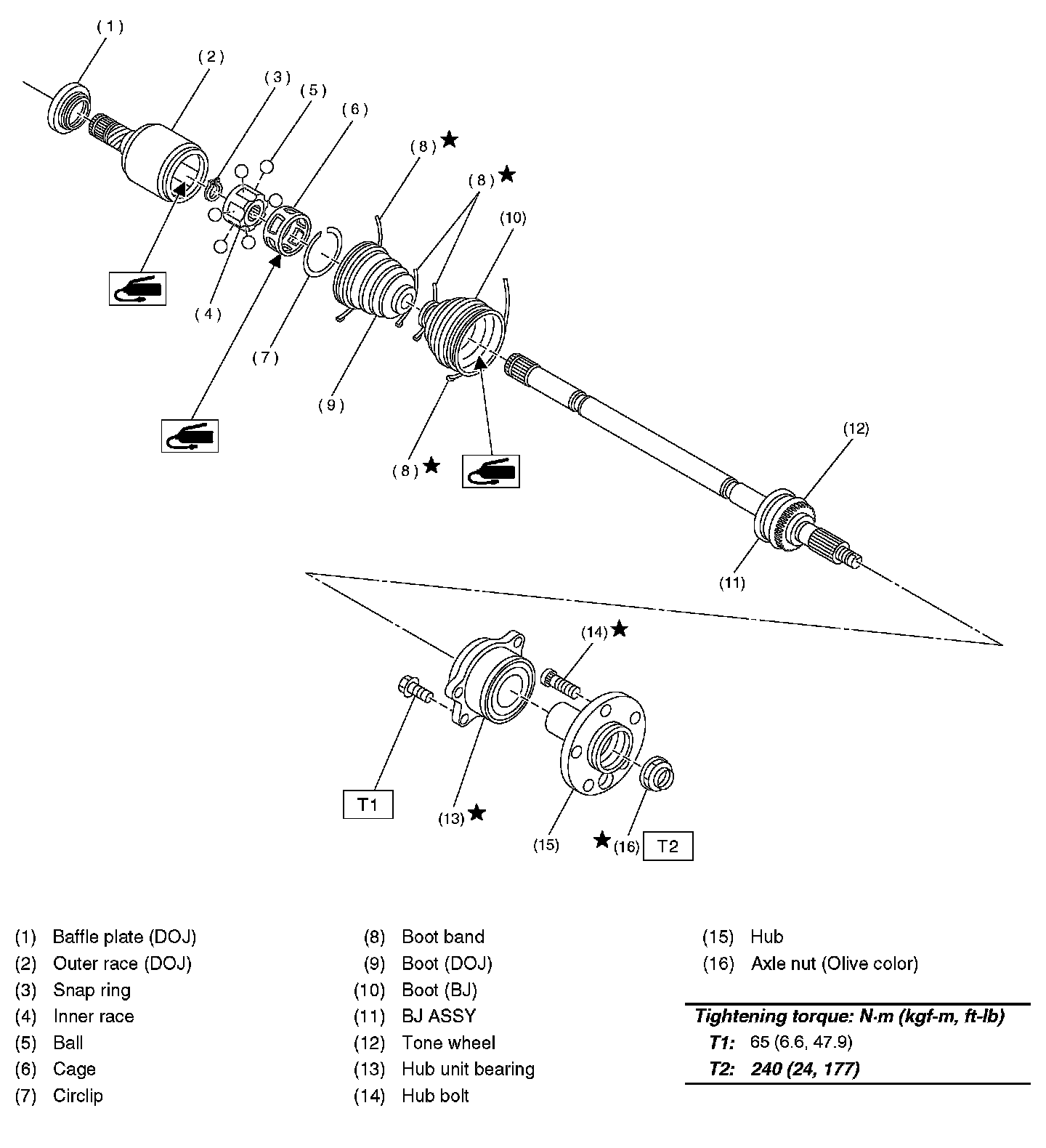

System Diagram
