2.5L SOHC

Mass Air Flow and Intake Air Temperature Sensor

REMOVAL

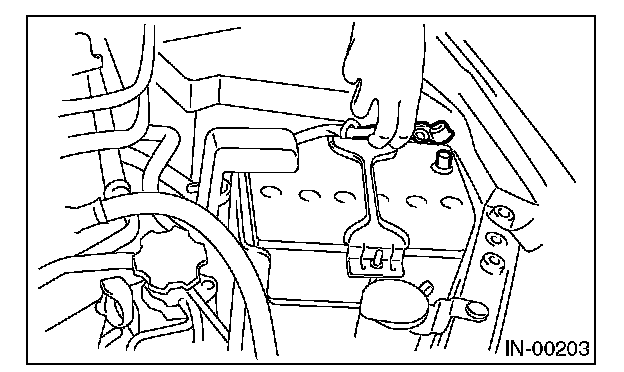

1. Disconnect the ground cable from battery.

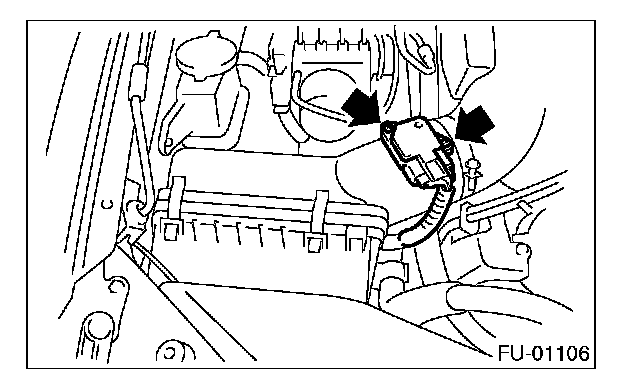

2. Disconnect the connector from mass air flow and intake air temperature sensor.

3. Remove the mass air flow and intake air temperature sensor.

INSTALLATION
Install in the reverse order of removal.

Tightening torque: 1 N.m (0.1 kgf-m, 0.7 ft-lb)
