Connecting Rod, Engine





Connecting Rod

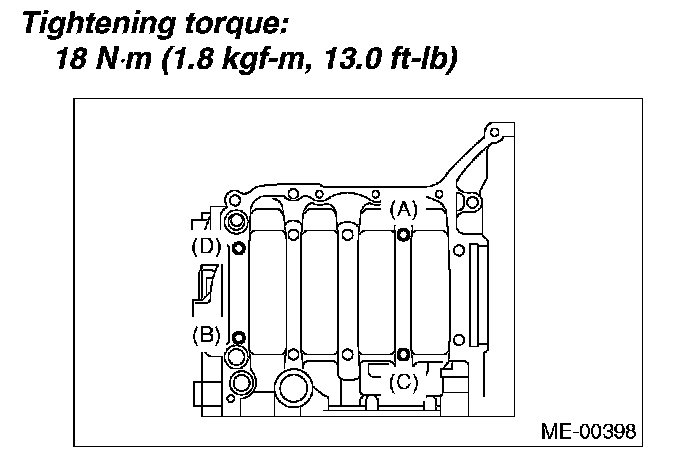

Tighten the 10 mm cylinder block connecting bolts on LH side (A-D) in alphabetical sequence.

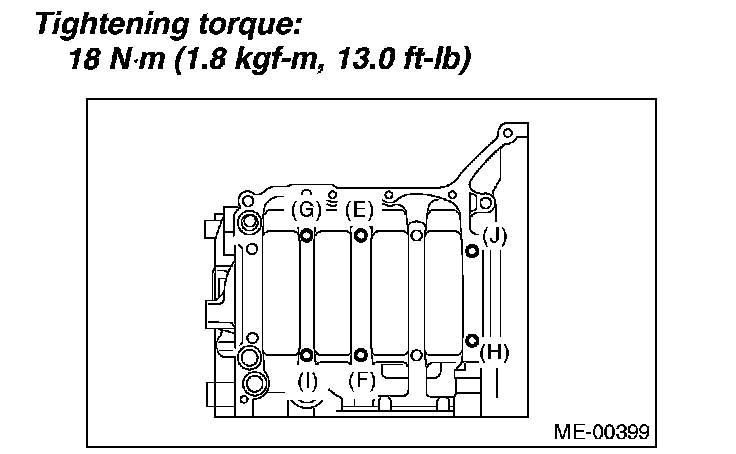

Tighten the 10 mm cylinder block connecting bolts on RH side (E-J) in alphabetical sequence.

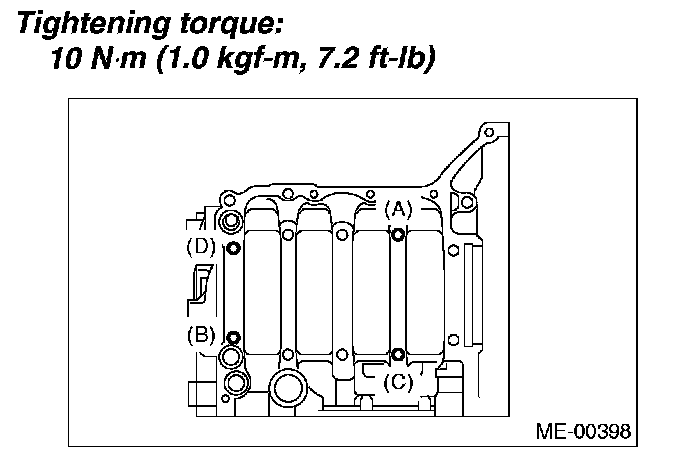

Further tighten the LH side bolts (A-D) in alphabetical sequence.

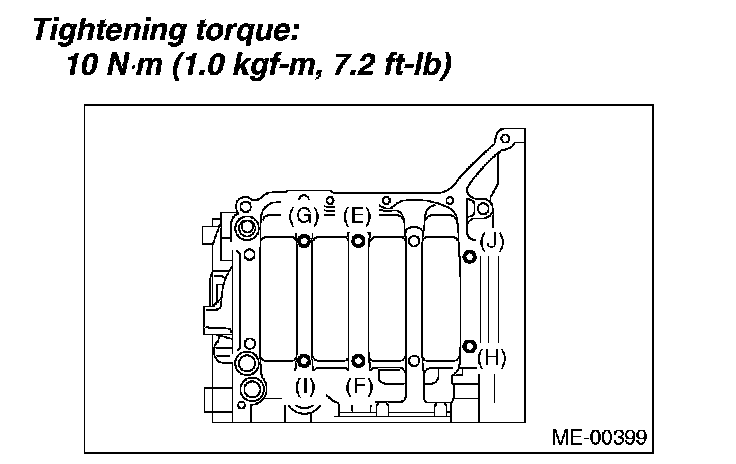

Further tighten the RH side bolts (E-J) in alphabetical sequence.

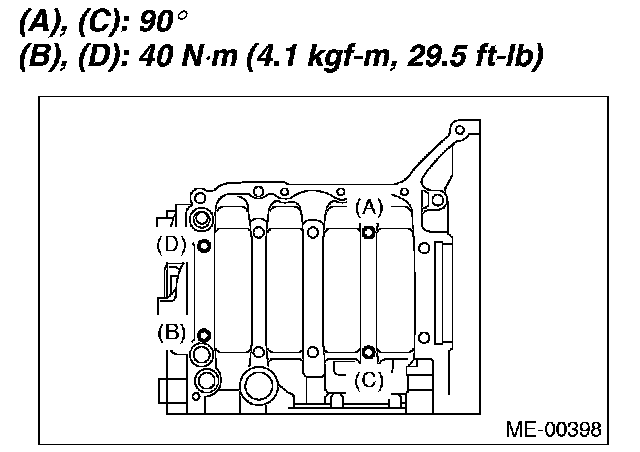

Further tighten the LH side bolts (A-D) in alphabetical sequence.

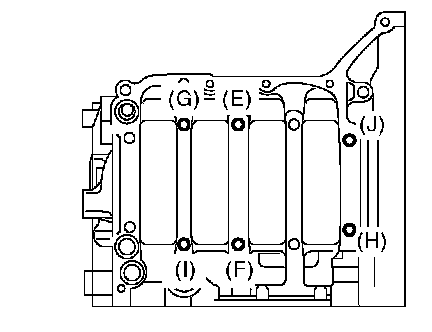

Further tighten the RH side bolts (E-J) to 90° in alphabetical sequence.

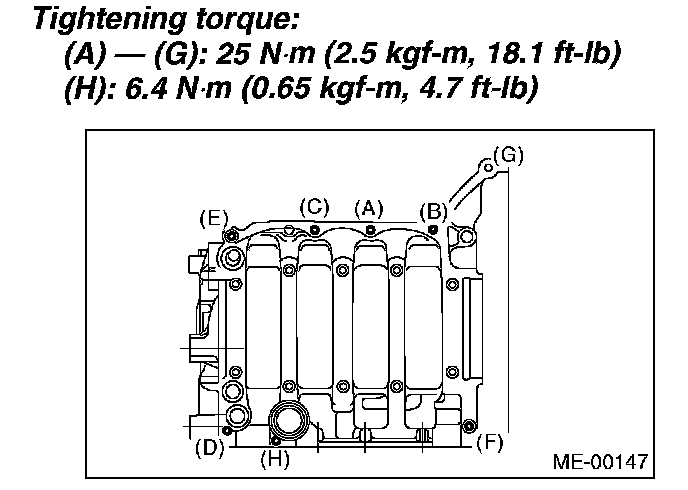

Tighten the 8 mm and 6 mm cylinder block connecting bolts on LH side (A-H) in alphabetical sequence.
