Control Module: Service and Repair

Transmission Control Module (TCM)

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the instrument panel lower cover and remove connector.

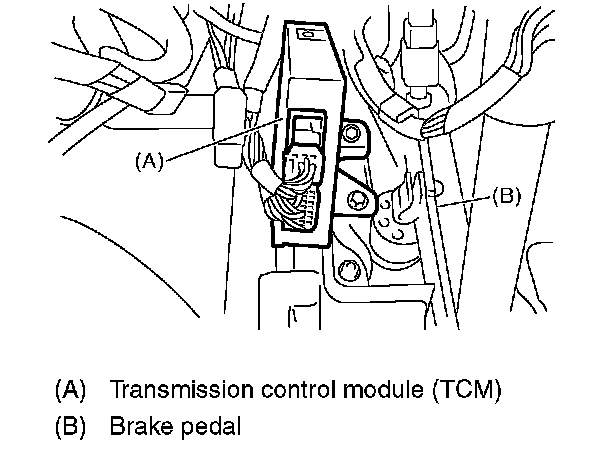

3. Disconnect the connector from TCM.
4. Remove the TCM.

INSTALLATION

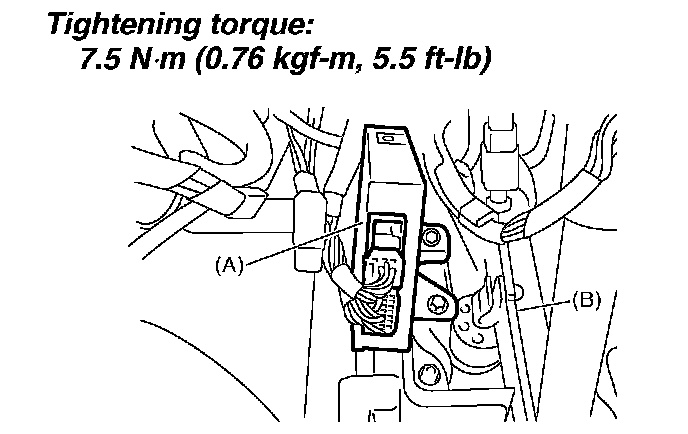

1. Install the TCM.
Tightening torque: 7.5 Nm (0.76 kgf-cm, 5.5 ft. lbs.)
2. Connect the connector to TCM.
3. Install in the reverse order of removal.
4. Execute the learning control promotion.
