Trunk / Liftgate Lock: Testing and Inspection

Trunk Lid Lock Assembly

INSPECTION

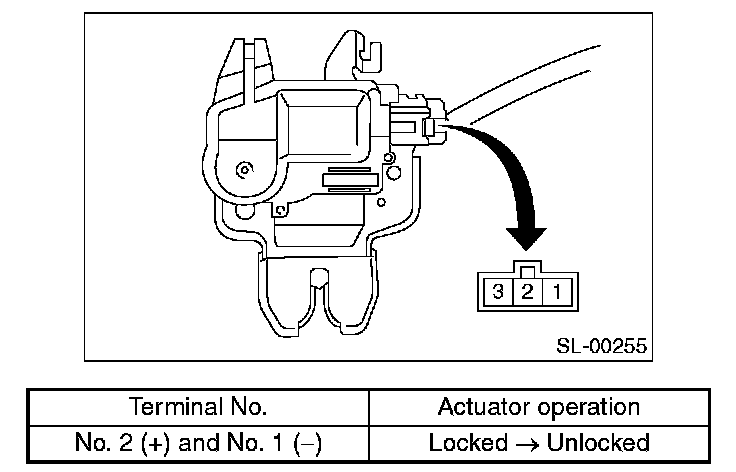

1. Disconnect the trunk lid actuator harness connector.




2. Connect the battery to trunk lid actuator terminals.
If defective, replace the trunk lid actuator.
3. Check the striker for deformation or abnormal wear.
4. Check the safety lever for improper movement.
5. Check other levers and the spring for rust formation and irregular movement.
6. Check the cable of trunk opener for smooth operation.
