Map Light: Service and Repair

Spot Map Light

REMOVAL
1. Disconnect the ground cable from battery.

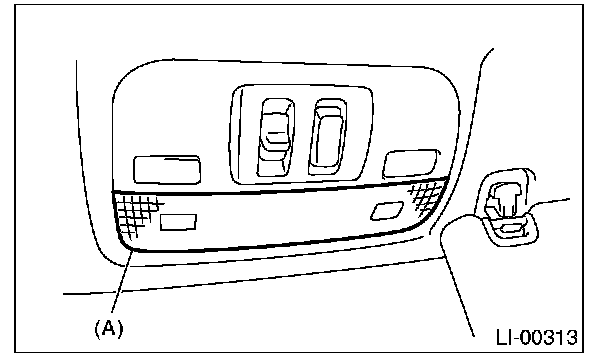

2. Remove the lens (A) and spot map light mounting screws (B).

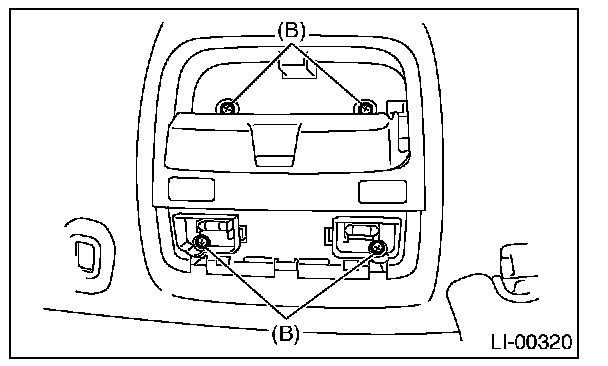

- Model with sunroof

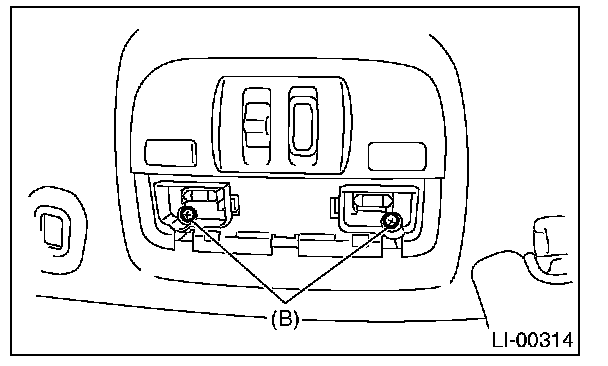

- Model without sunroof

3. Disconnect the harness connectors and remove the spot map light.

INSTALLATION
Install in the reverse order of removal.
