Drive Belt: Service and Repair

COMPONENT

REMOVAL

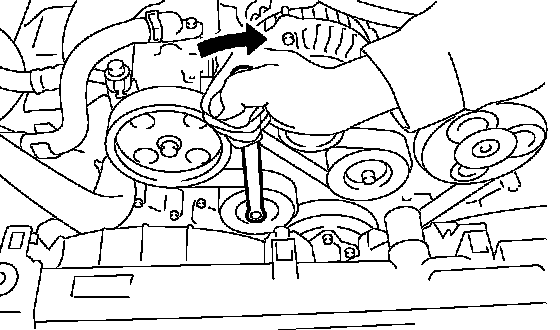

1. Install the tool to belt tension adjuster assembly installation bolt.





2. Rotate the tool clockwise and loosen the V-belt to remove.
3. Remove the V-belt covers.

INSTALLATION





Install in the reverse order of removal.

INSPECTION
1. Replace the V-belt, if cracks, fraying or wear is found.

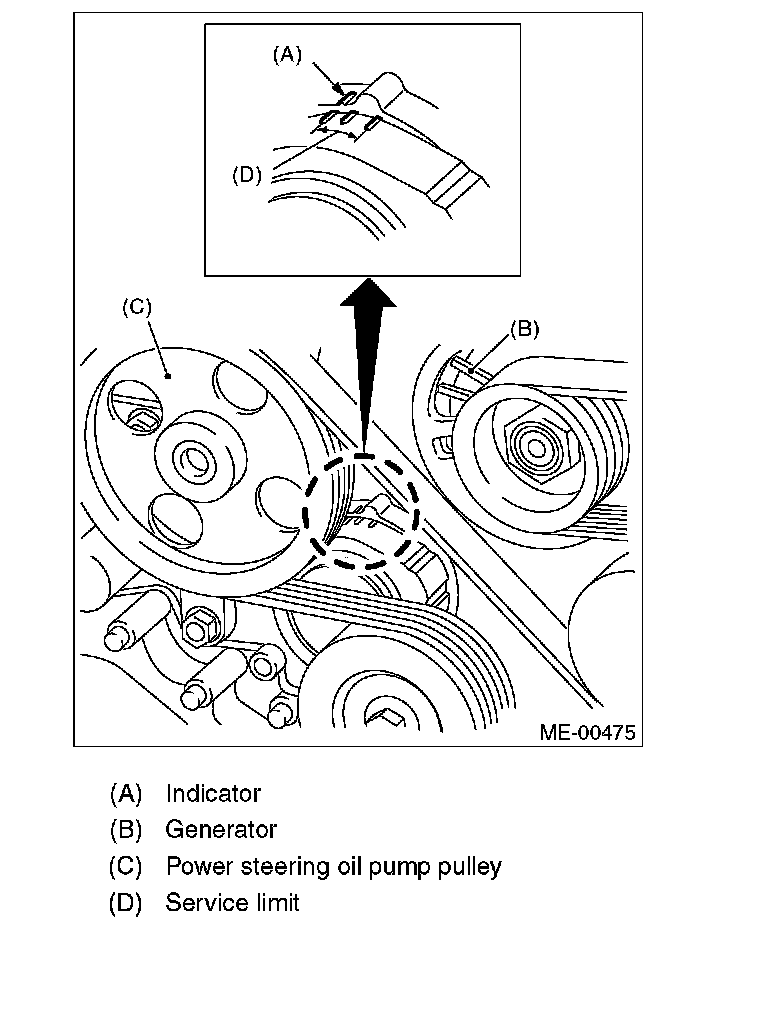

2. Check that the V-belt automatic belt tension indicator (A) is within the range (D).
