Data Link Connector: Diagrams

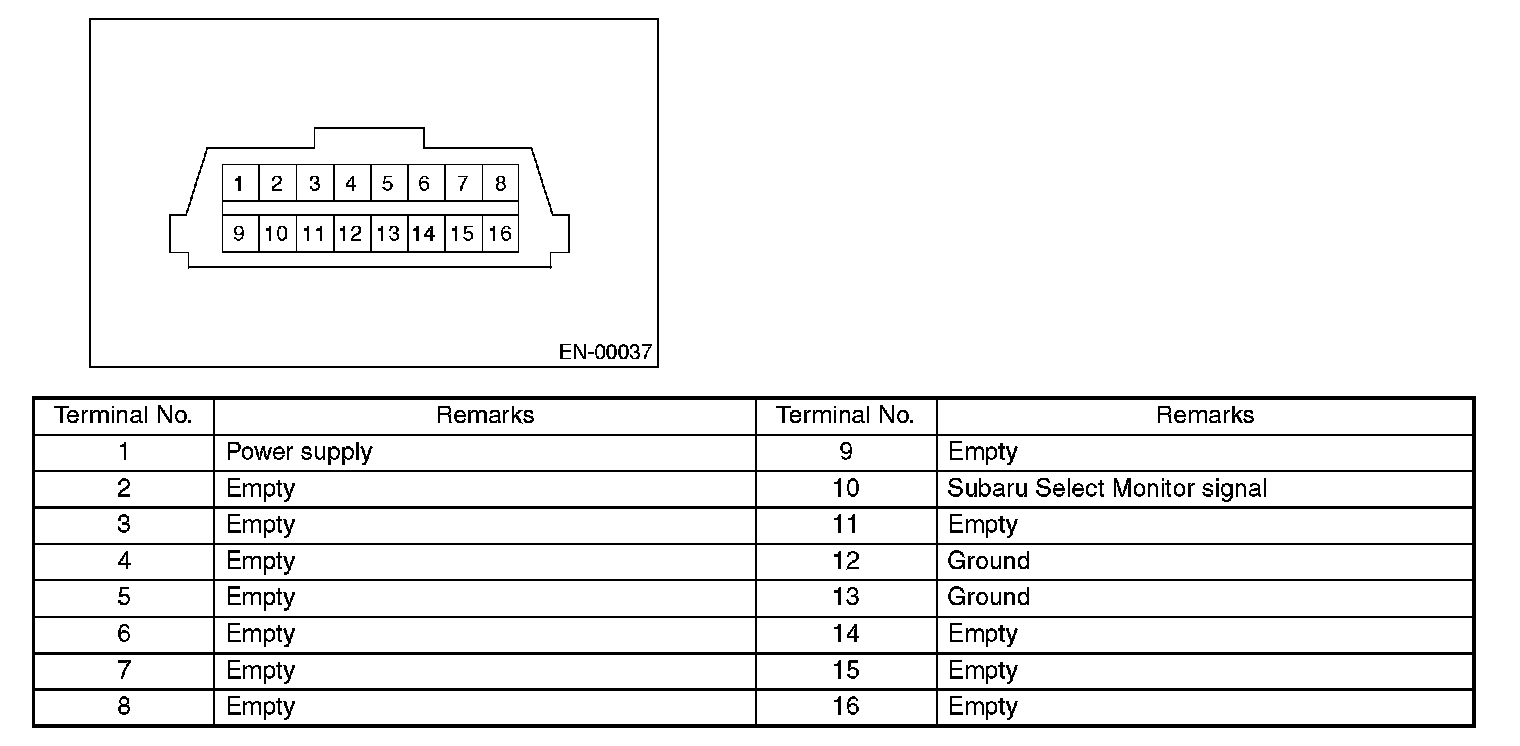

Data Link Connector






NOTE: This connector is used for Subaru Select Monitor.

CAUTION: Do not connect any scan tools other than the Subaru Select Monitor and the general scan tools, because the circuit for the Subaru Select Monitor may be damaged.
