Compulsory Valve Operation Check Mode: Operation

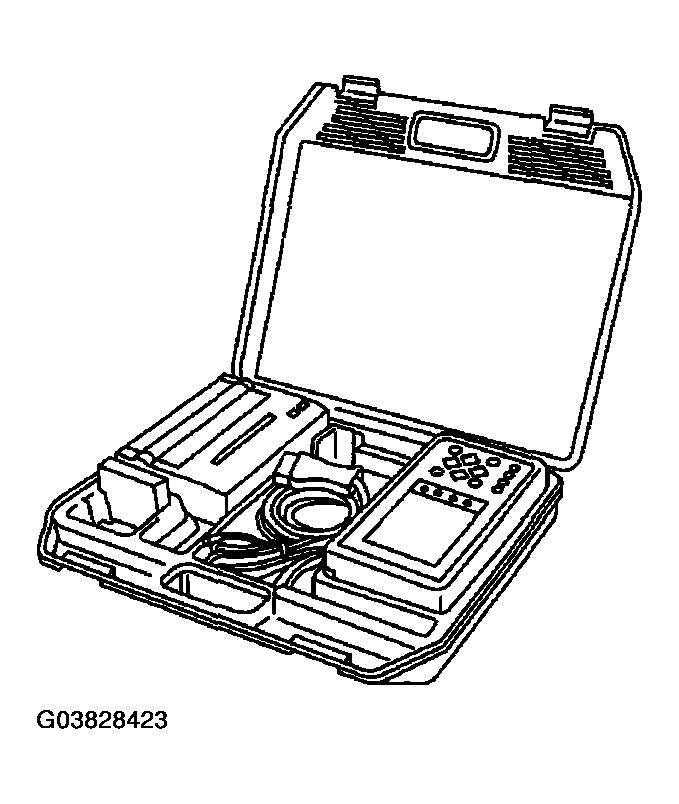

- Prepare the Subaru Select Monitor kit. < Ref. to , PREPARATION TOOL , General Descriptions. >
- Connect the diagnosis cable to Subaru Select Monitor.

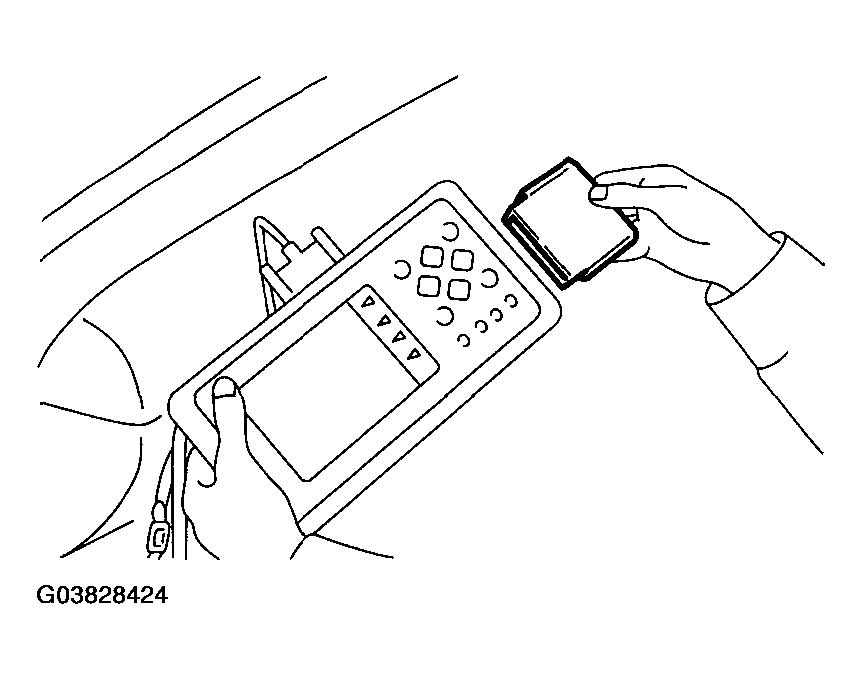

- Insert the cartridge to Subaru Select Monitor. < Ref. to , PREPARATION TOOL , General Descriptions. >
- Connect the test mode connector (A) located at the lower portion of glove box.

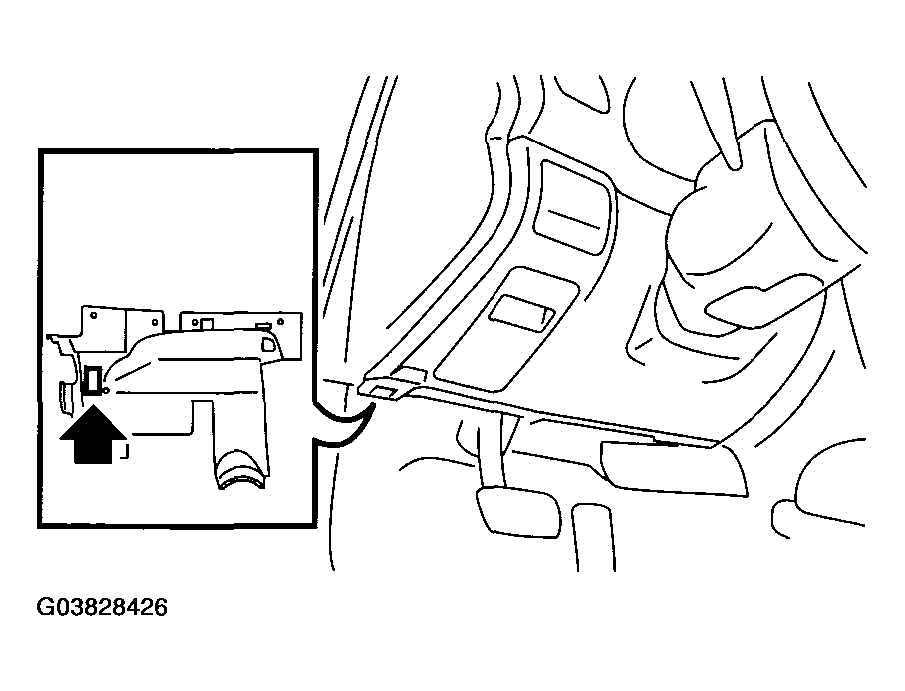

- Connect the Subaru Select Monitor to data link connector located in the lower portion of instrument panel (on the driver's side).
CAUTION: Do not connect the scan tools except for Subaru Select Monitor or OBD-II general scan tool.

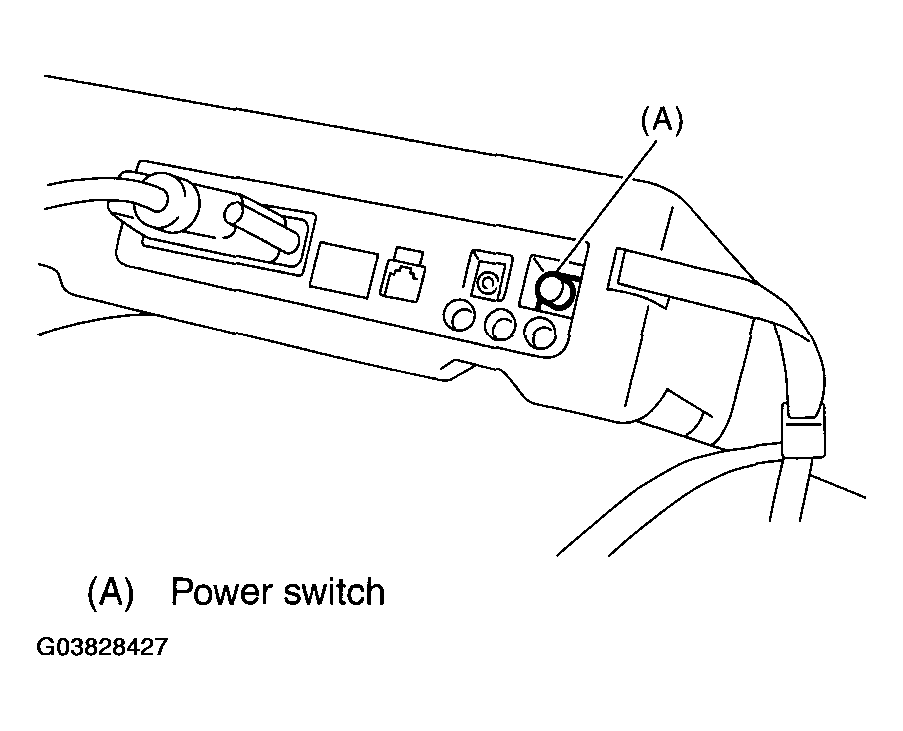

- Turn the ignition switch to ON (engine OFF) and turn Subaru Select Monitor switch to ON.
- On the << Main Menu>> display screen, select the {Each System Check} and press the [YES] key.
- On the << System Selection Menu>> display screen, select the {Engine} and press the [YES] key.
- Press the [YES] key after the information of engine type has been displayed.
- On the << Engine Diagnosis>> display screen, select the {System Operation Check Mode} and press the [YES] key.
- On the << System Operation Check Mode>> display screen, select the {Actuator ON/OFF Operation} and press the [YES] key.
- Select the desired compulsory actuator on the << Actuator ON/OFF Operation>> display screen and press the [YES] key.
- Pressing the [NO] key completes the compulsory operation check mode. The display will then return to the << Actuator ON/OFF Operation>> screen.
- A list of support data is shown in SUPPORT DATA LIST .
SUPPORT DATA LIST
| Contents | Display |
|---|---|
| Compulsory fuel pump relay operation check | Fuel Pump Relay |
| Compulsory radiator fan relay operation check | Radiator Fan Relay |
| Compulsory air conditioning relay operation check | A/C Compressor Relay |
| Compulsory purge control solenoid valve operation check | CPC Solenoid Valve |
| Compulsory pressure control solenoid valve operation check | PCV Solenoid Valve |
| Compulsory air assist vent control solenoid valve operation check | Vent Control Solenoid Valve |
| Compulsory fuel tank sensor control solenoid valve operation check | Fuel Tank Sensor Control Valve |
NOTE:
- The following parts will be displayed but not functional.DISPLAYED PARTS
Display EGR Solenoid Valve AAI Solenoid Valve ASV Solenoid Valve FICD Solenoid Pressure Switching Sol. 1 Pressure Switching Sol. 2 Turbocharger Wastegate Solenoid EXH. Bypass Control Permit Flag - For detailed operation procedure, refer to SUBARU SELECT MONITOR OPERATION MANUAL .
