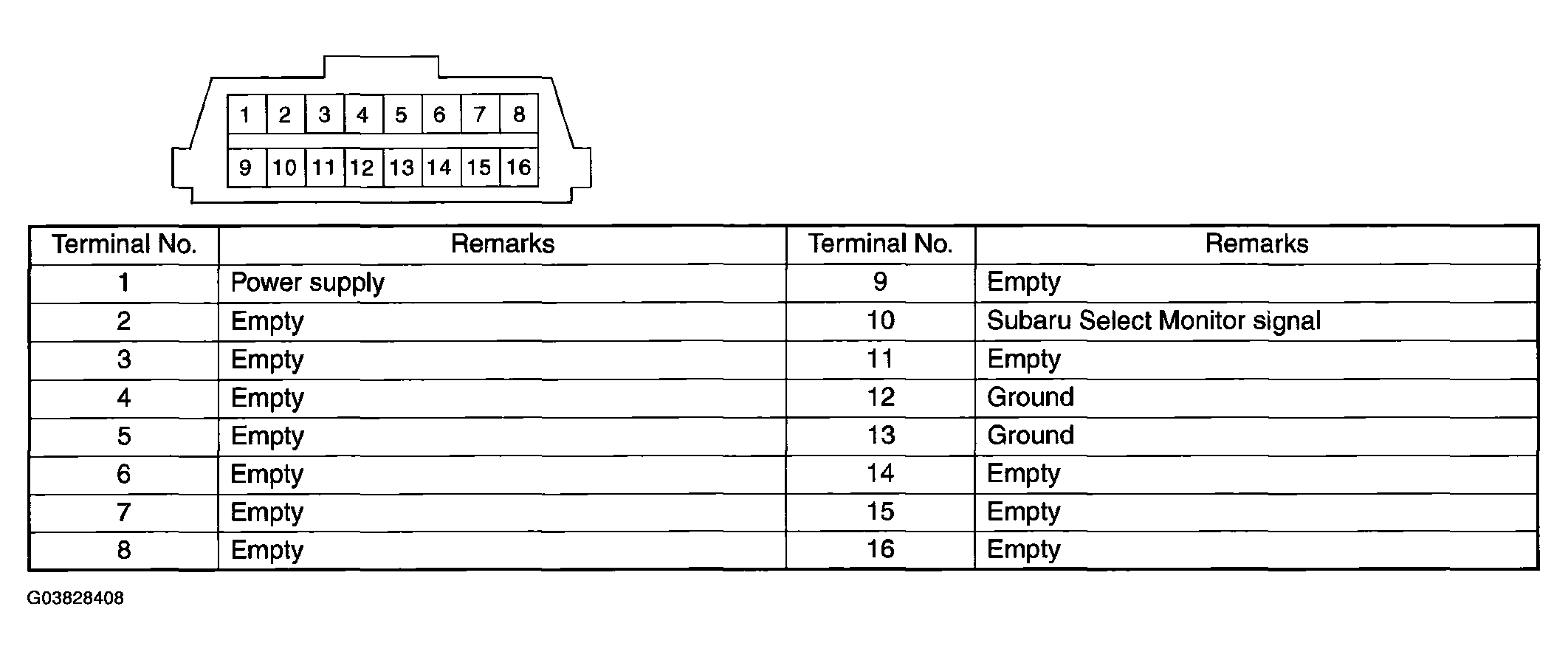

Data Link Connector: Note
This connector is used for Subaru Select Monitor.
CAUTION:
Do not connect any scan tools except for Subaru Select Monitor or OBD-II general scan tool, because the circuit for Subaru Select Monitor may be damaged.
Courtesy of SUBARU OF AMERICA, INC.
