Diagnostics for Engine Starting Failure: Procedure

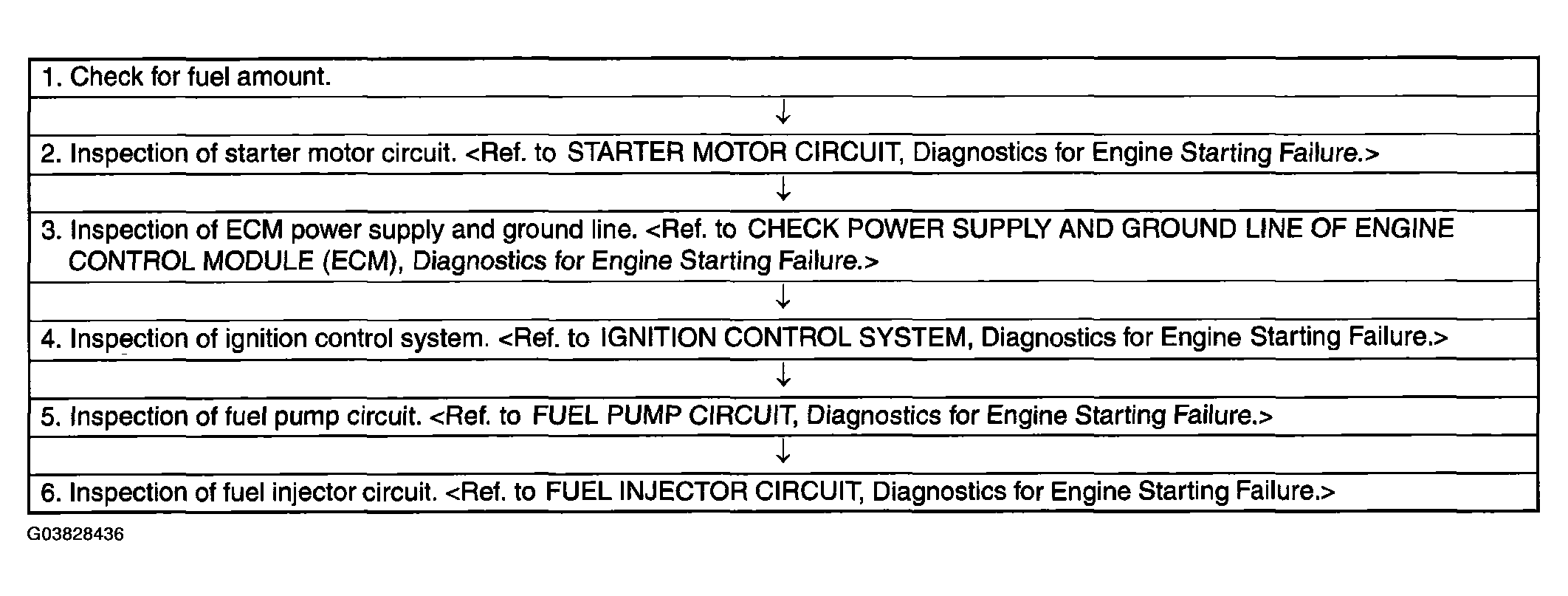

Fig 1: Engine Starting Failure Diagnosis Procedure Chart
G03828436Courtesy of SUBARU OF AMERICA, INC.
