Engine Ground

Make sure the engine grounding terminal is properly connected to engine.

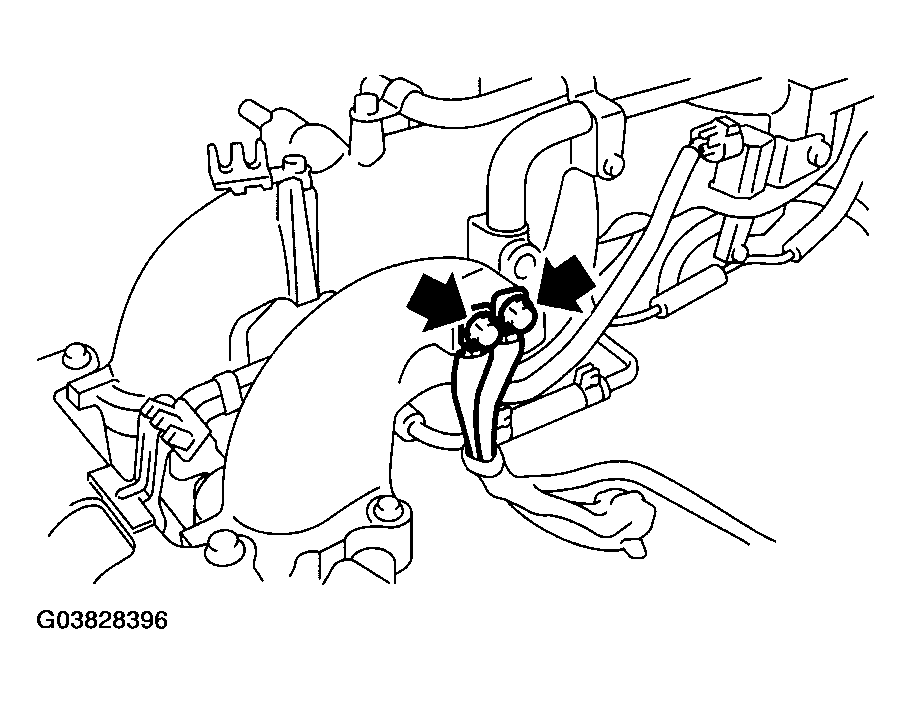

Fig 1: Locating Engine Grounding Terminal
G03828396Courtesy of SUBARU OF AMERICA, INC.
