Engine Controls - Engine (Diagnostics) (H4SO): Electrical Component Location: Location: Engine: Sensor

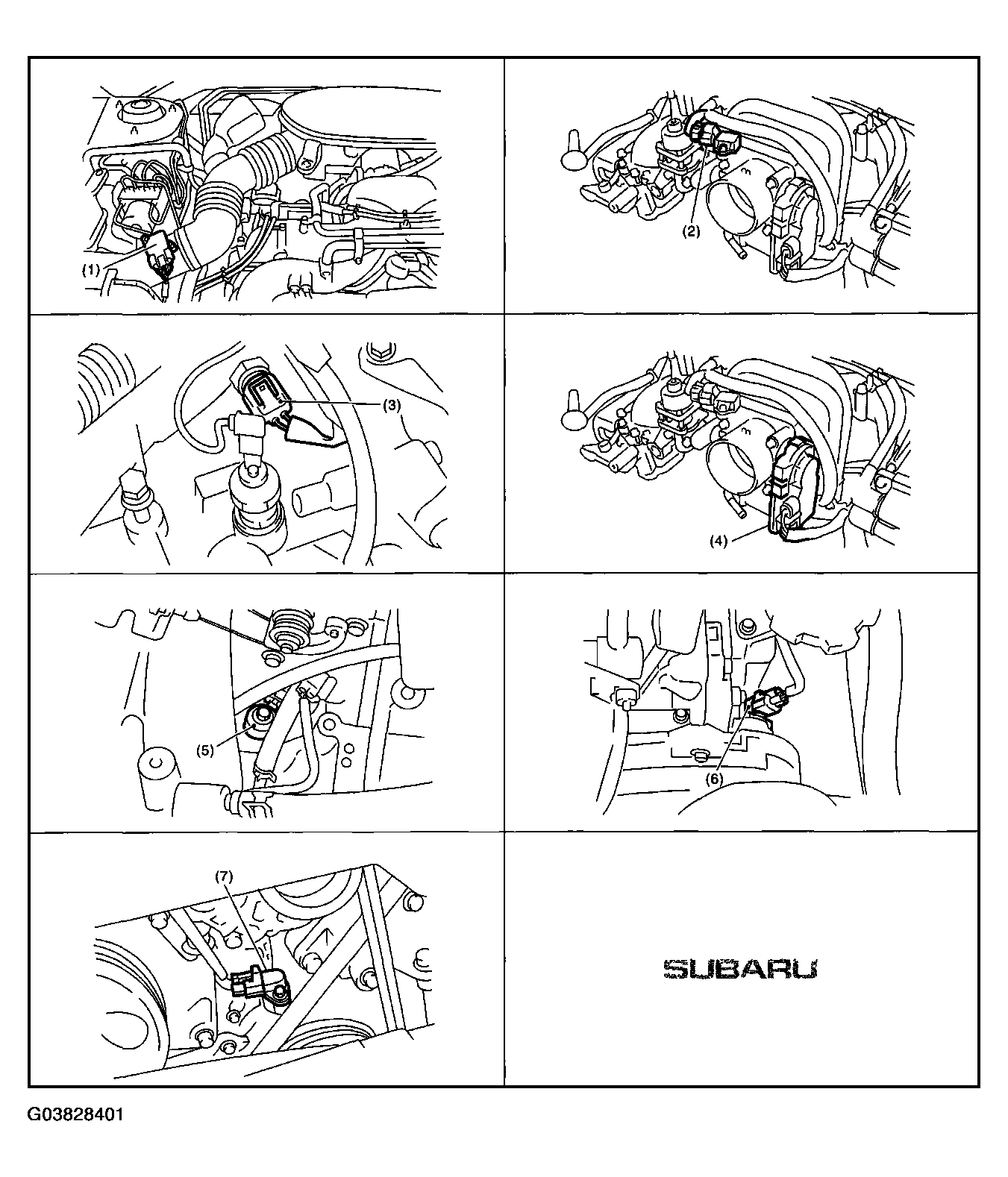

Fig 1: Identifying Sensor Locations (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

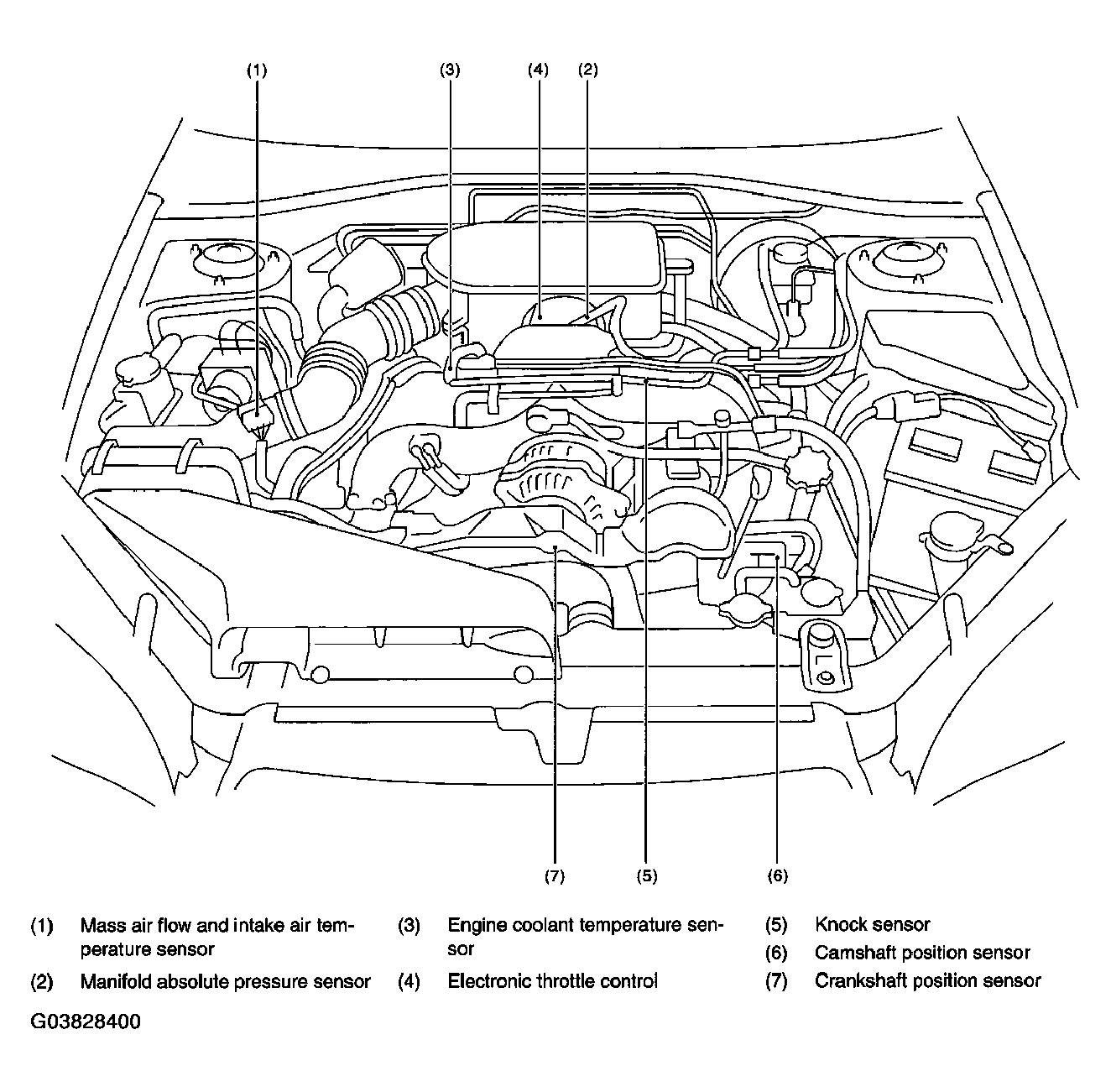

Fig 2: Identifying Sensor Locations (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

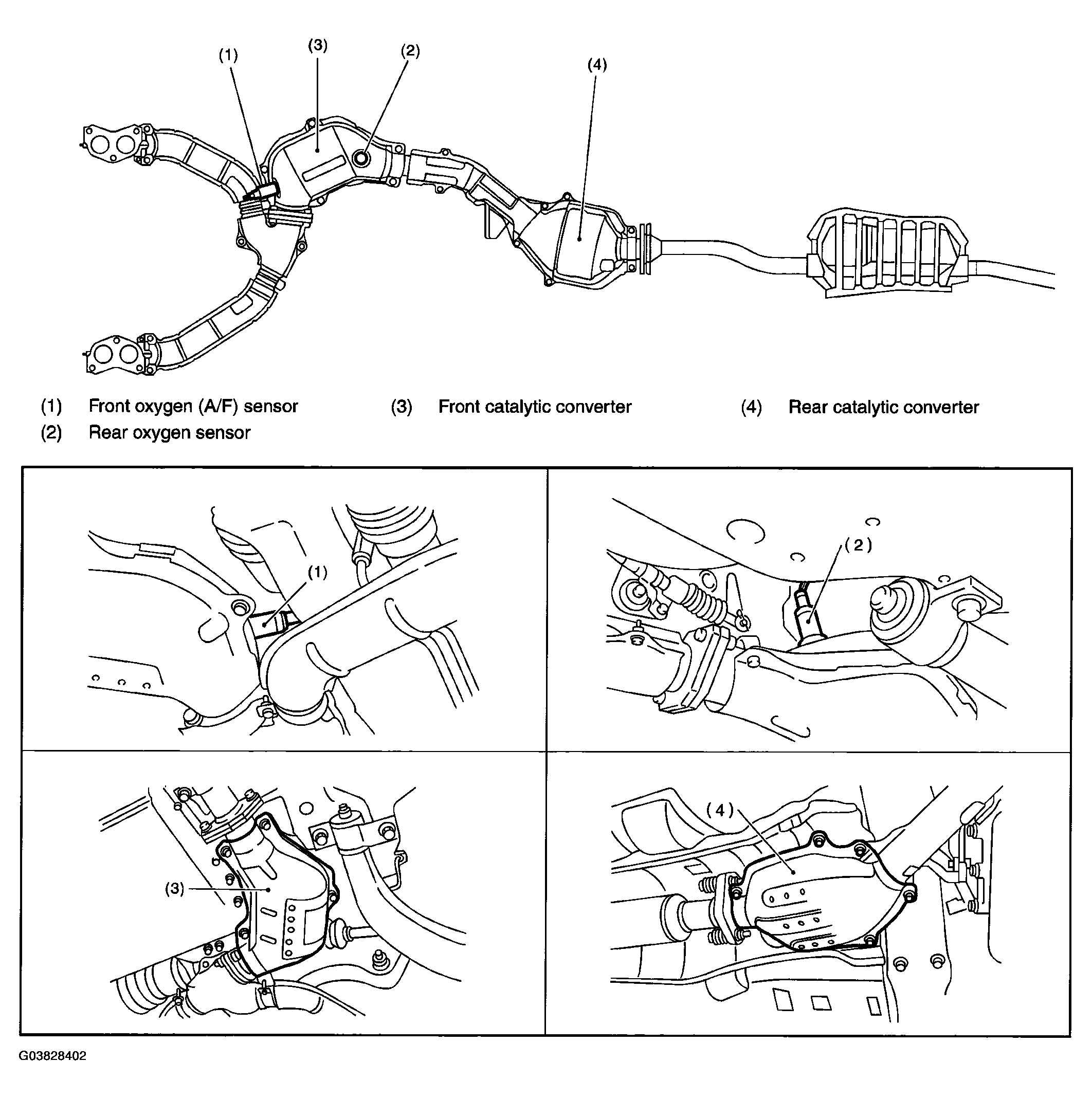

Fig 3: Identifying Sensor Locations (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

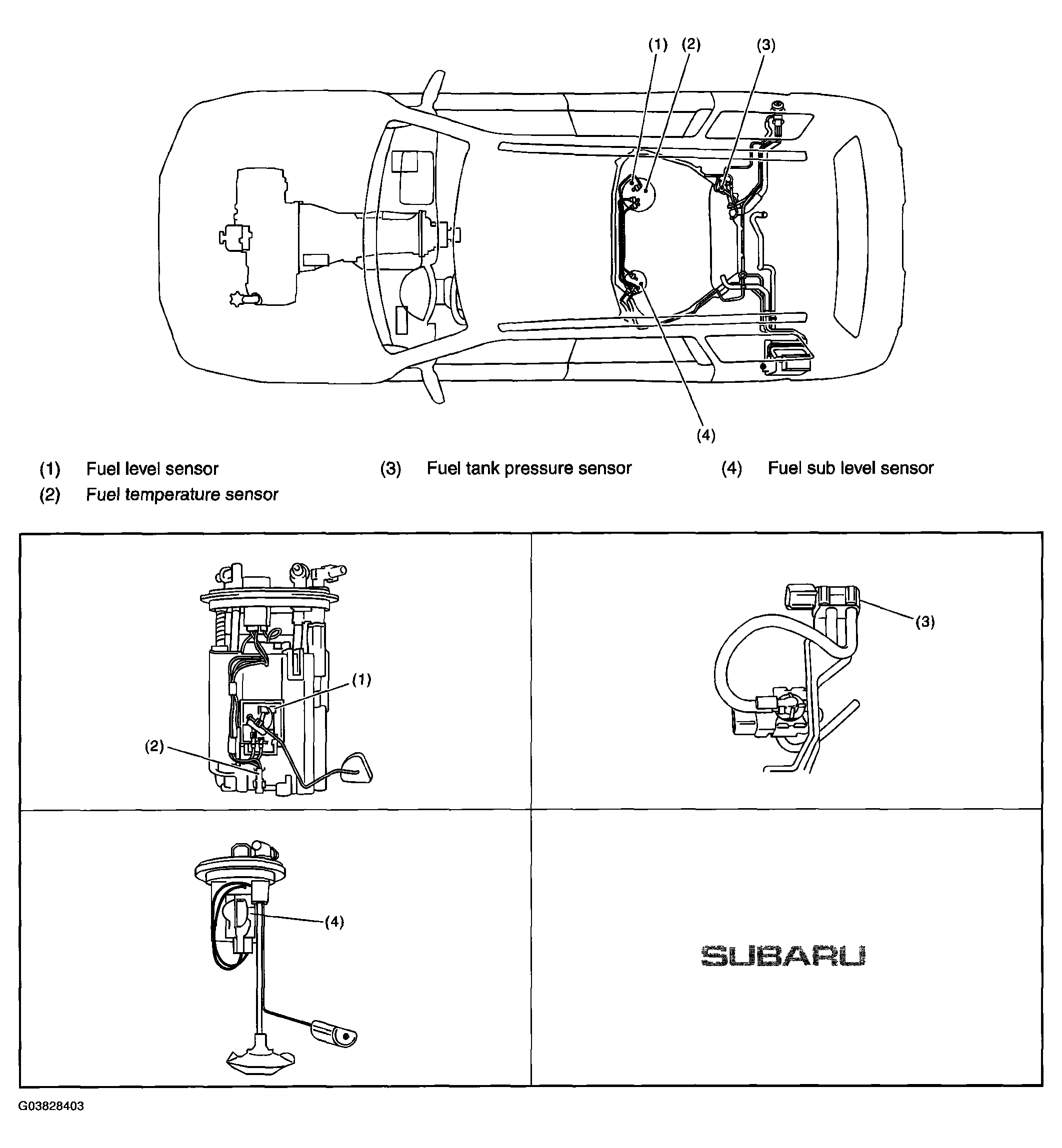

Fig 4: Identifying Sensor Locations (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
