Remote Control Mirror Switch

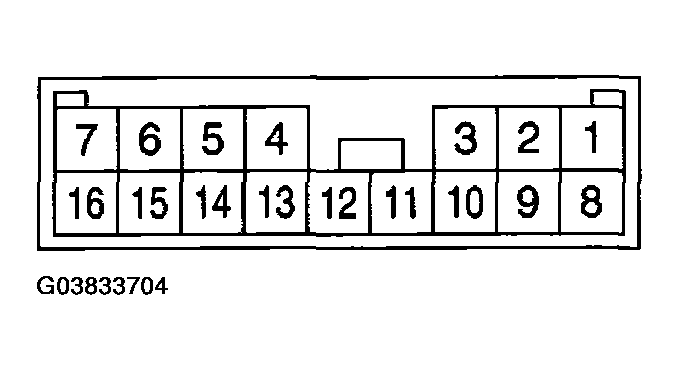

Move the remote control mirror switch to each position and check continuity between terminals.
- Change over switch R
SWITCH POSITION TERMINAL SPECIFICATION
| Switch position | Terminal No. | Standard |
|---|---|---|
| OFF | - | More than 1 MΩ |
| UP | 10 and 12, 15 and 14 | Less than 1 Ω |
| DOWN | 10 and 15, 12 and 14 | Less than 1 Ω |
| LEFT | 10 and 11, 15 and 14 | Less than 1 Ω |
| RIGHT | 10 and 15, 11 and 14 | Less than 1 Ω |
- Change over switch L
SWITCH POSITION TERMINAL SPECIFICATION
| Switch position | Terminal No. | Standard |
|---|---|---|
| OFF | - | More than 1 MΩ |
| UP | 10 and 8, 15 and 14 | Less than 1 Ω |
| DOWN | 10 and 15, 8 and 14 | Less than 1 Ω |
| LEFT | 10 and 9, 15 and 14 | Less than 1 Ω |
| RIGHT | 10 and 15, 9 and 14 | Less than 1 Ω |
Replace the remote control mirror switch if defective.
