Diagnosing The CPC Open Fixation: DTC

P0457 Evaporative Emission Control System Leak Detected (Fuel Cap Loose/Off) CPC open fixation diagnosis are performed in mode Z as shown in Fig 1 .

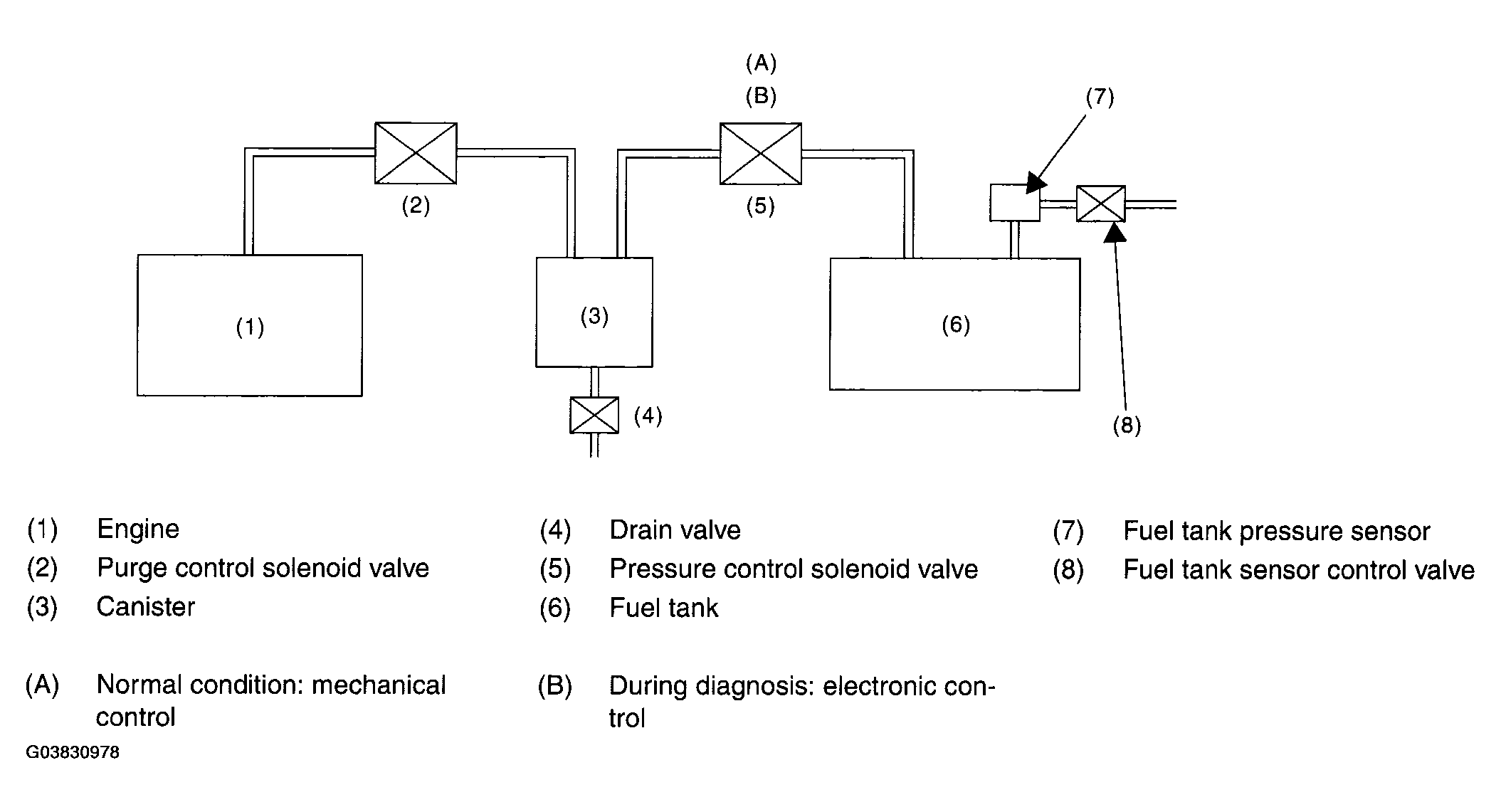

Fig 1: CPC Open Fixation Diagnosis Diagram In Mode Z

Courtesy of SUBARU OF AMERICA, INC.
