Front Strut: Disposal

CAUTION:
  • Before handling struts, be sure to wear goggles to protect eyes from gas, oil and cutting powder.
  • Do not disassemble the strut damper or place into a fire.
  • Drill a hole into struts in case of discarding struts filled with gas.
  1. Place the strut on a level surface with the piston rod fully expanded.
  2. Using a 2 to 3 mm (0.08 to 0.12 in) dia. drill, make holes in areas shown in Fig 1 .

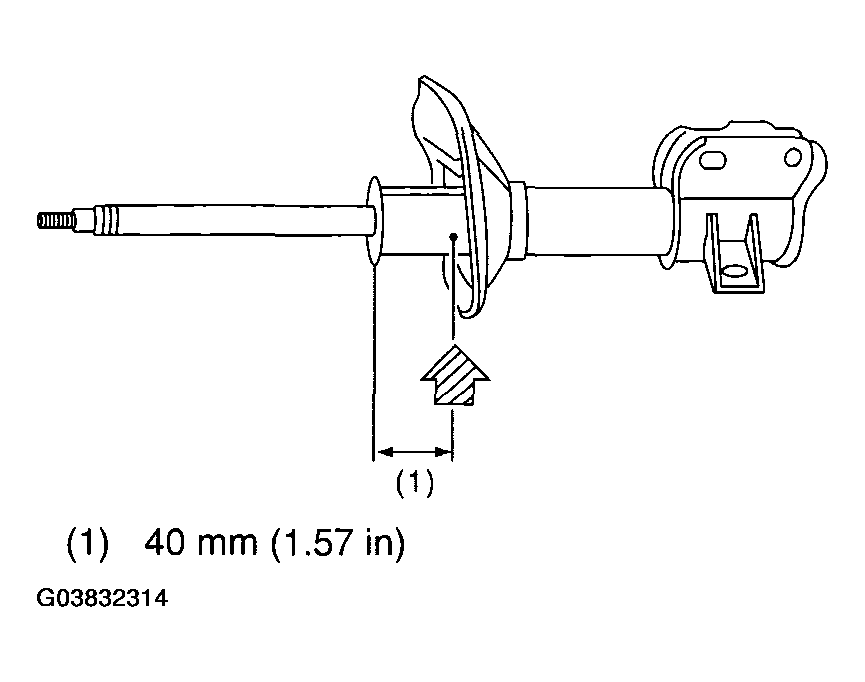

Fig 1: Identifying Drilled Hole
G03832314Courtesy of SUBARU OF AMERICA, INC.
