Front Suspension: General Description: Specification
CHASSIS SPECIFICATION
| Model | Sedan | Wagon | ||||||
|---|---|---|---|---|---|---|---|---|
| 2.5 i | 2.5 GT | OUTBACK | 2.5 i | 2.5 GT | OUTBACK | |||
| Front | Wheel arch height [Tolerance:+12 mm-24 mm mm (+0 47 in-0 94 in )] |
mm (in) | 381 (15.0) | 439(17.3) | 381 (15.0) | 439(17.3) | ||
| Camber (Tolerance: °0°45' Differences between RH and LH: 45' or less) | -0°15' | 0°40' | -0°15' | 0°40' | ||||
| Caster (Referential Value) | 5°55' | 4°55' | 5°40' | 4°55' | ||||
| Steering angle (Tolerance: +/-1.5°) |
Inner wheel | 37.2° | 38.0° | 37.2° | 38.0° | |||
| Outer wheel | 33.0° | 33.7° | 33.0° | 33.7° | ||||

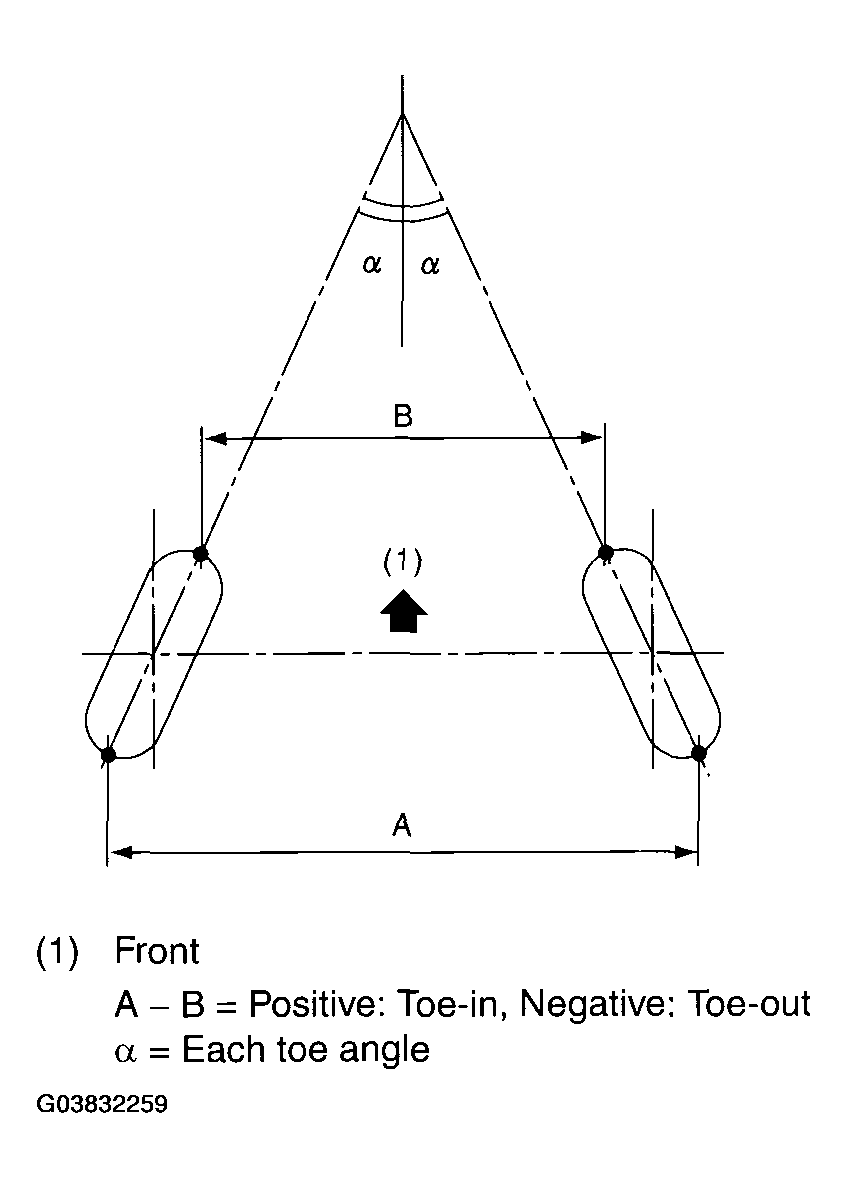

| Toe-in | mm (in) | 0+/-3 (0+/-0.12) Toe angle (sum of both wheels): 0°+/-0°15' | ||||||
| Kingpin angle (Referential Value) | 13°45' | 12°05' | 13°45' | 12°05' | ||||
| Diameter of stabilizer | mm (in) | 20 (0.79) | 21 (0.83) | 20 (0.79) | 21 (0.83) | |||
| Rear | Wheel arch height [Tolerance:+12 mm-24 mm (+0.47 in-0 94 in )] |
mm (in) | 365 (14.4) | 438 (17.2) | 375 (14.8) | 438 (17.2) | ||
| Camber (Tolerance: +/-0°45' Differences between RH and LH: 45' or less) | -0°40' | -0°10' | -0°30' | -0°10' | ||||
| Toe-in | mm (in) | 0+/-3 (0+0.12) Toe angle (sum of both wheels): 0°+/-0°15' | ||||||
| Thrust angle (Tolerance: +/-0°30') | 0° | |||||||
| Diameter of stabilizer | mm (in) | 15(0.59) | 16(0.63) | 15(0.59) | 16(0.63) | 15(0.59) | ||
NOTE:
- Front and rear toe-ins and front camber can be adjusted. If the toe-in or camber tolerance exceeds specifications, adjust them.
- Other items indicated in the specification table cannot be adjusted. If those items exceed specifications, check suspension parts and connections for deformities; replace with new ones as required.
