Control Module Pinout Values

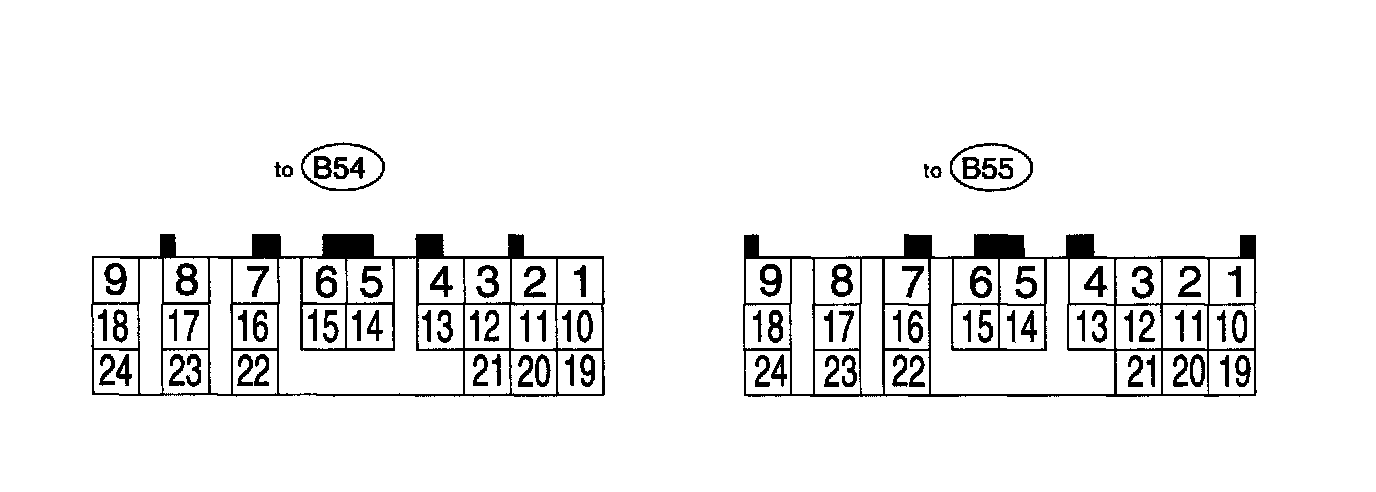

Transmission Control Module (TCM) 1/0 Signal

ELECTRICAL SPECIFICATION

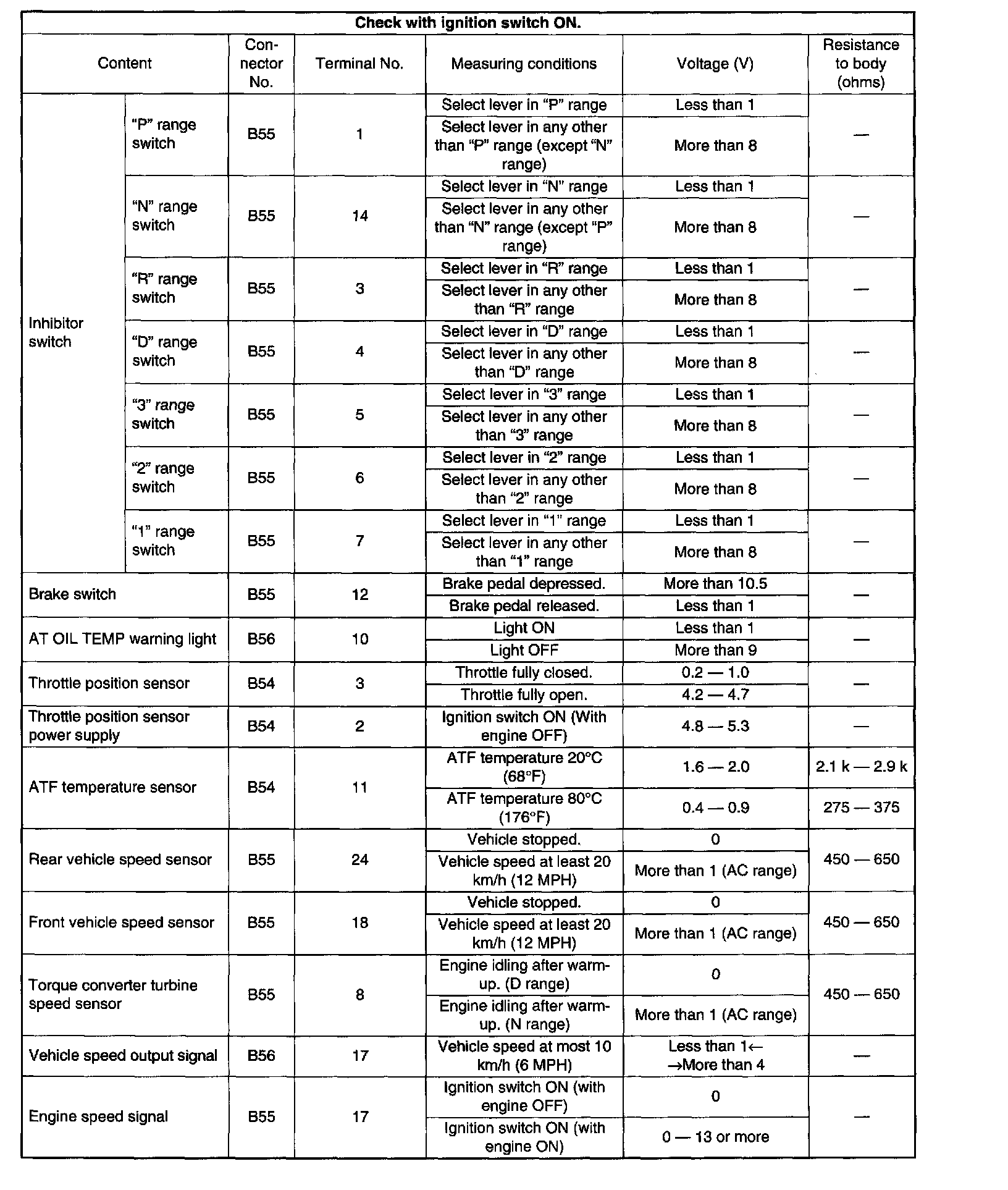

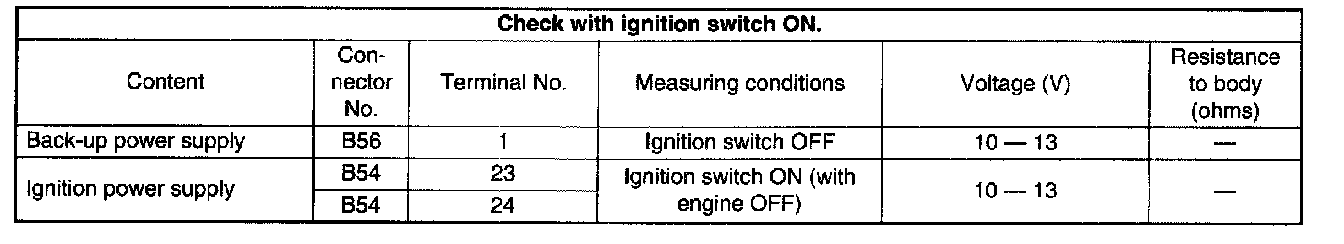

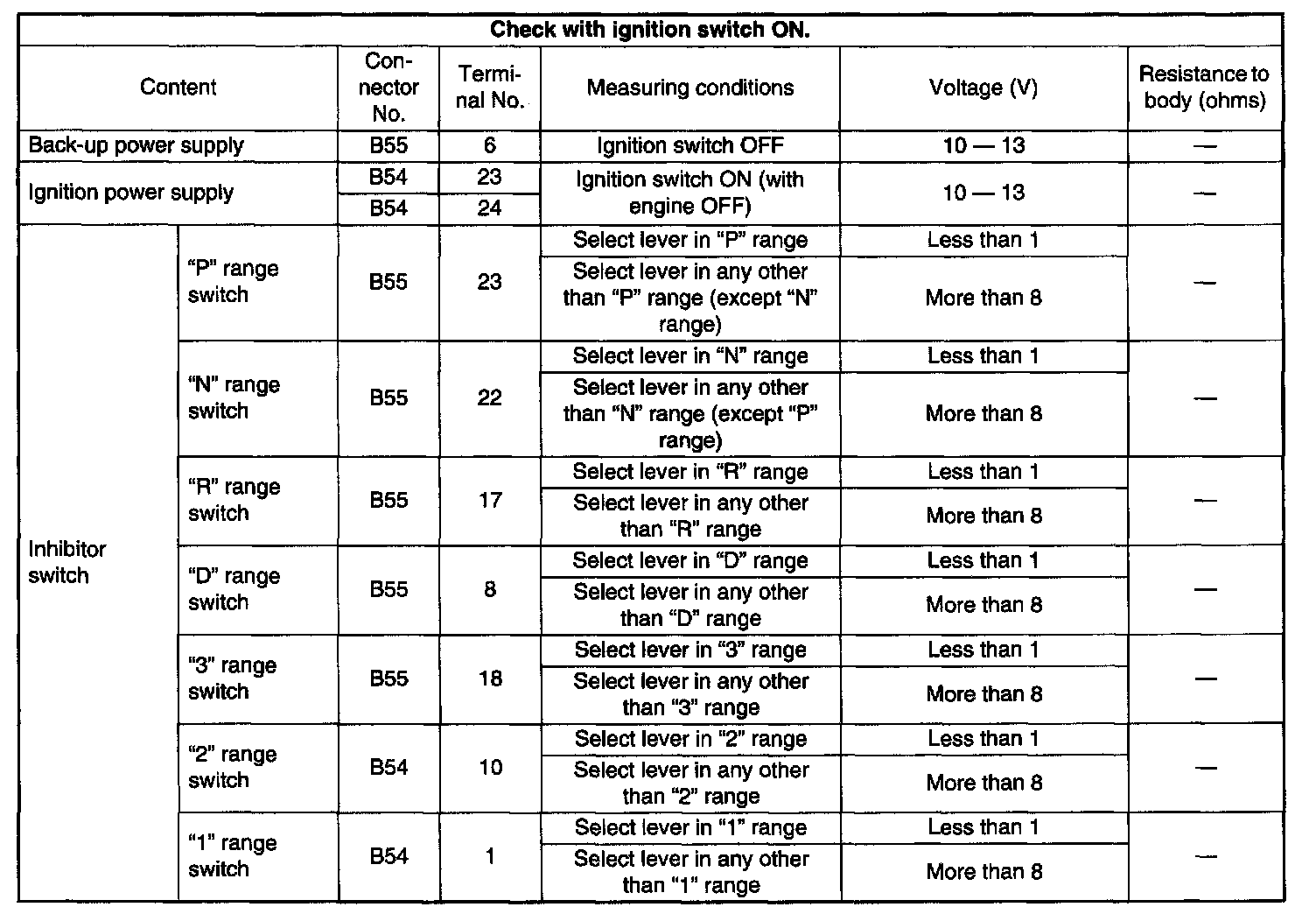

NON-TURBO MODEL

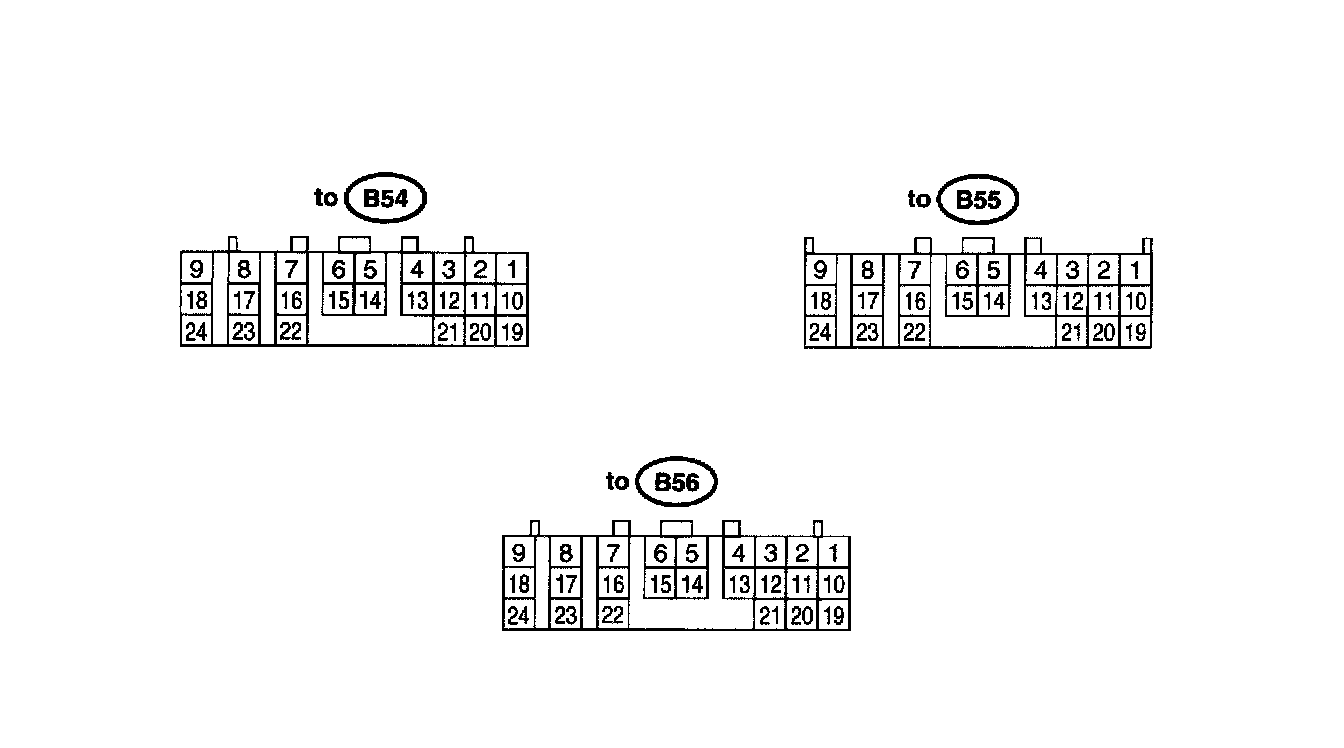

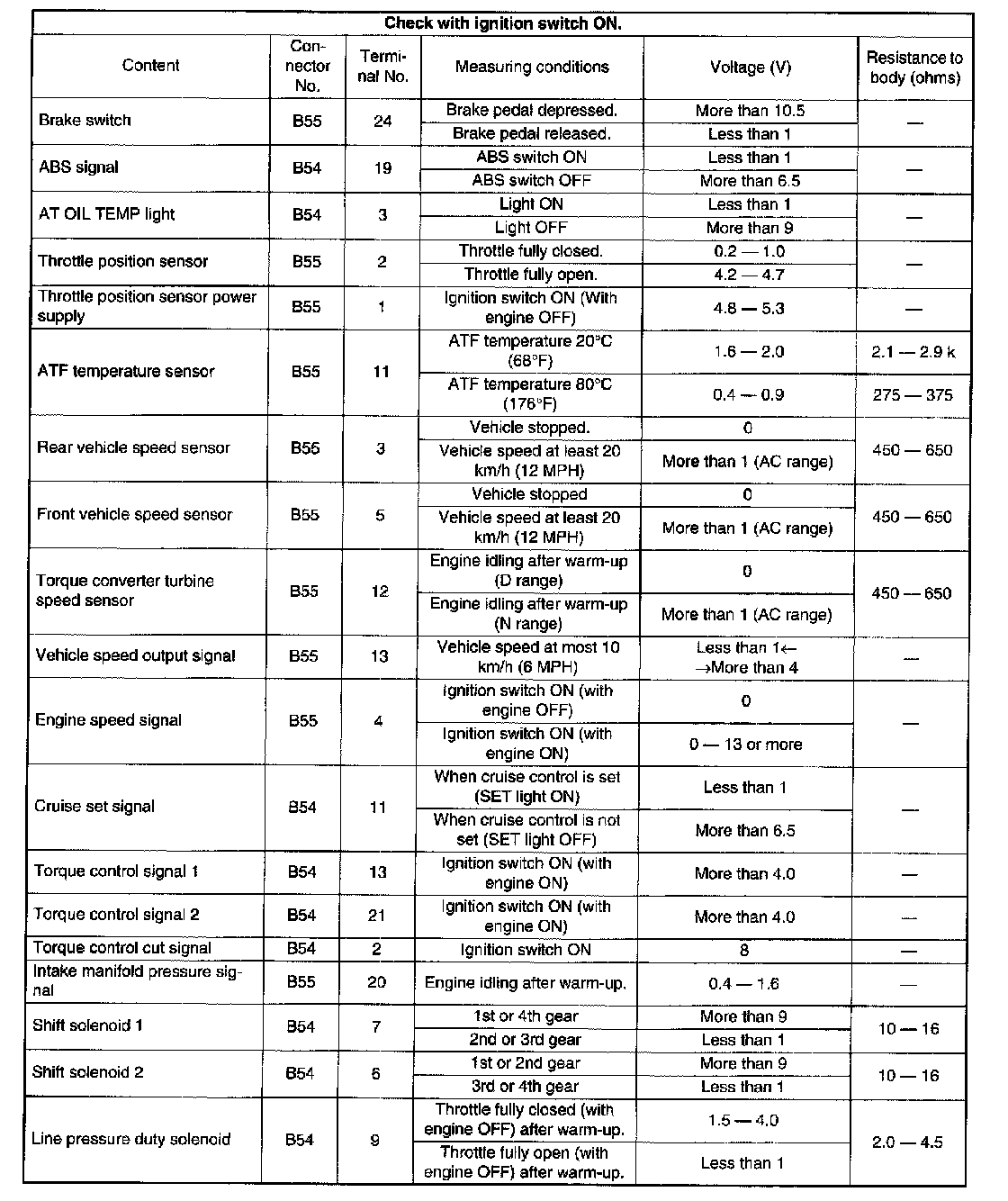

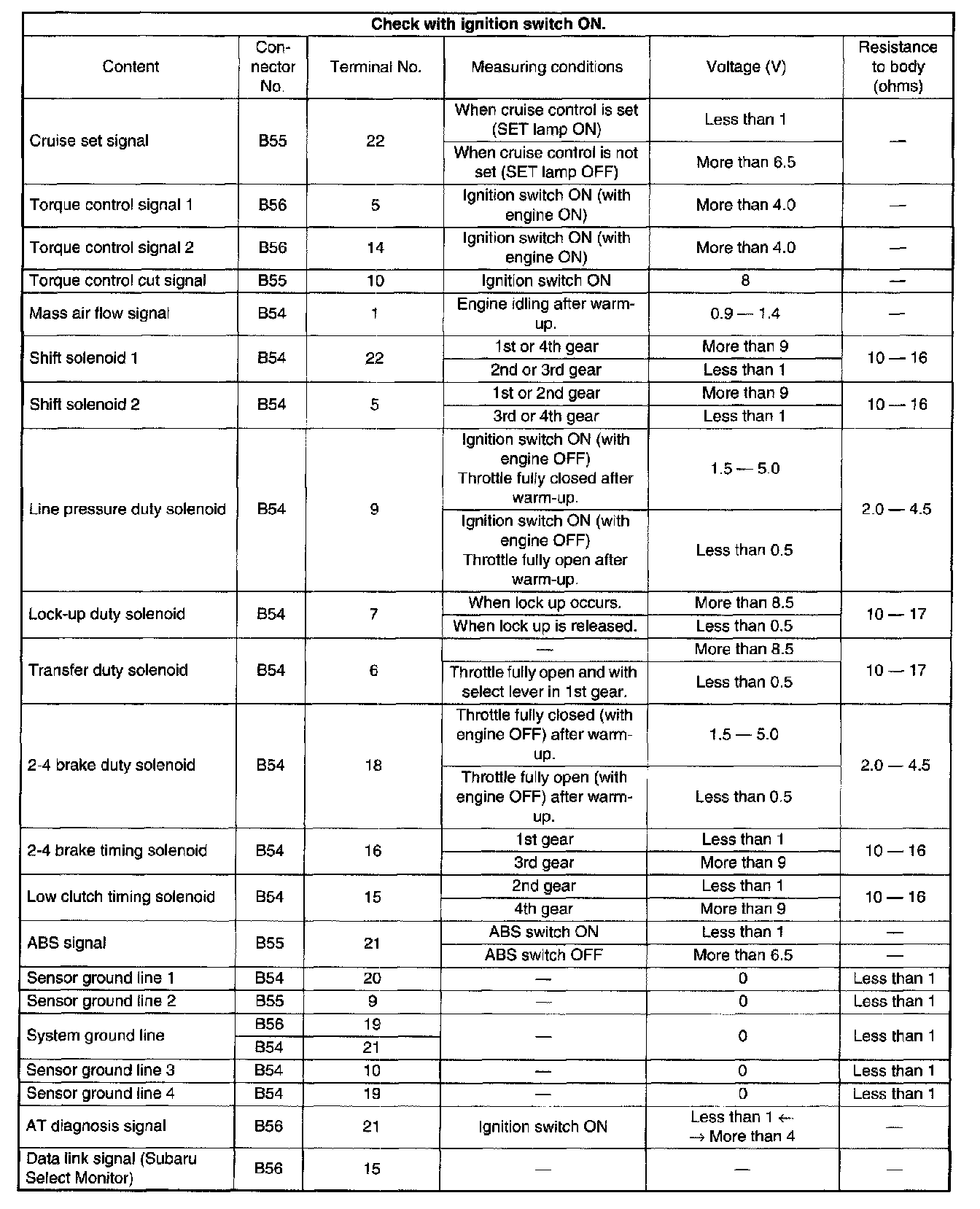

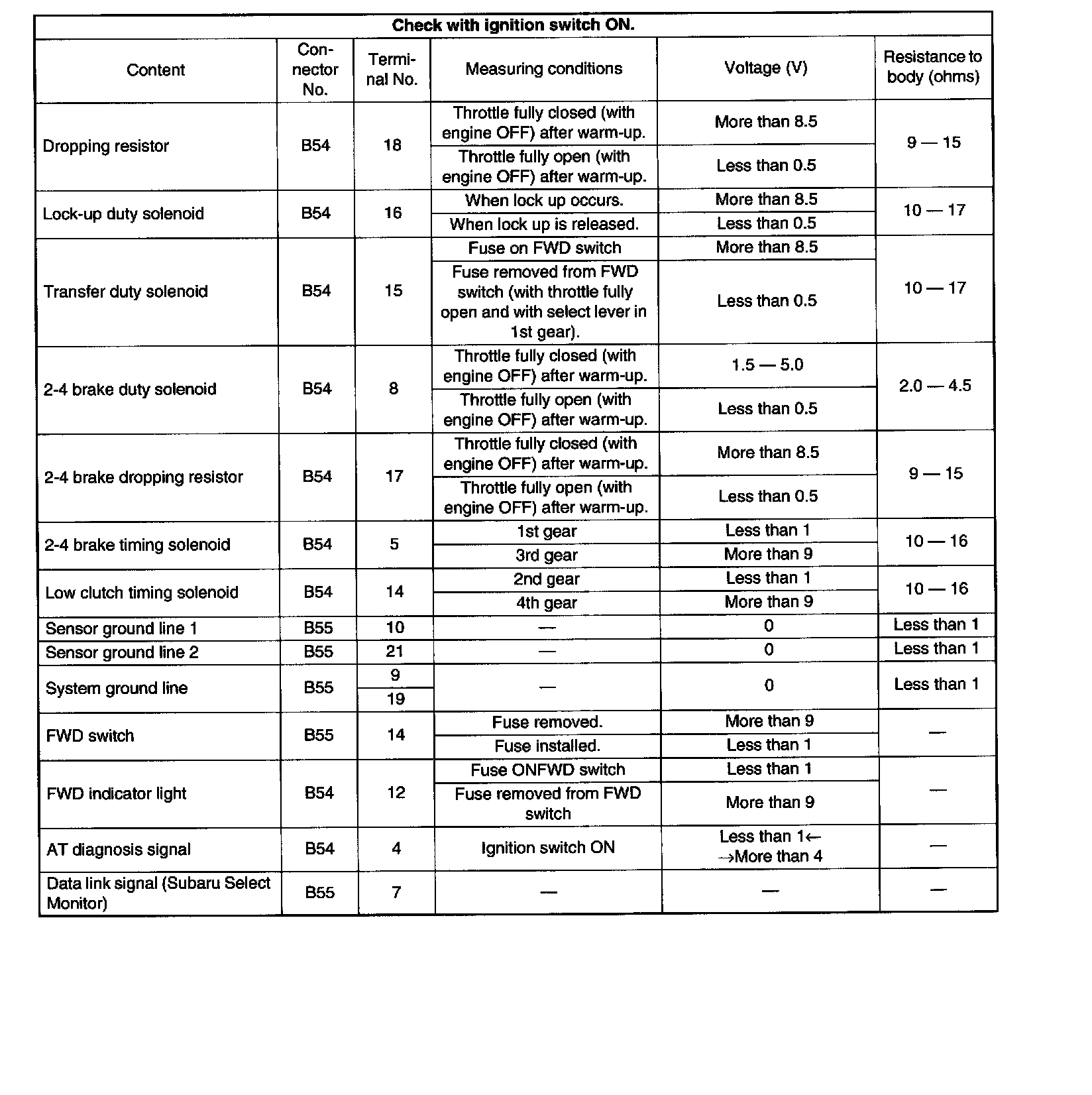

TURBO MODEL
