General Specifications














SPECIFICATION


Cylinder Head

Use new cylinder head gaskets.

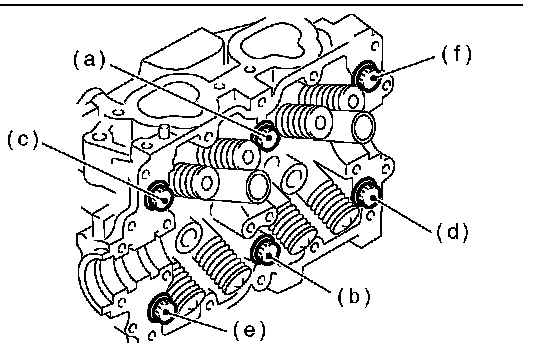

Tighten the cylinder head bolts.
Tighten all bolts 29 Nm (3.0 kgf-m, 22 ft. lbs.) in alphabetical sequence.
Then tighten all bolts 69 Nm (7.0 kgf-m, 51 ft. lbs.) in alphabetical sequence.
Back off all bolts by 180° in reverse order of installation, and back them off again by 180°.
Tighten all bolts 42 Nm (3.9 kgf-m, 31 ft. lbs.) in alphabetical sequence.
Tighten all bolts 80° - 90° in alphabetical sequence.
Tighten all bolts 40° - 45° in alphabetical sequence.

CAUTION: Do not tighten the bolts more than 45°.





Further tighten bolts (a) and (b) 40°- 45°

CAUTION: Ensure the total re-tightening angle of the step (6) and (7) does not exceed 90°.


Crank Pulley Tightening torque 180 Nm (18.4 kgf-m, 132.8 ft. lbs.)


Flywheel Tightening torque 72 Nm (7.3 kgf-m, 52.8 ft. lbs.)


Drive Plate Tightening torque 72 Nm (7.3 kgf-m, 52.8 ft. lbs.)


Oil Pump Tightening Torque 5.4 Nm (0.55 kgf-m, 4.0 ft. lbs.)

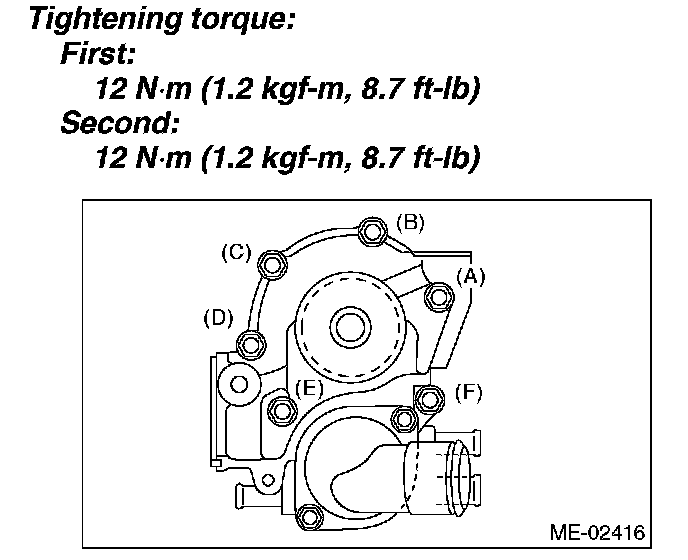

Water Pump
