Normal Operation

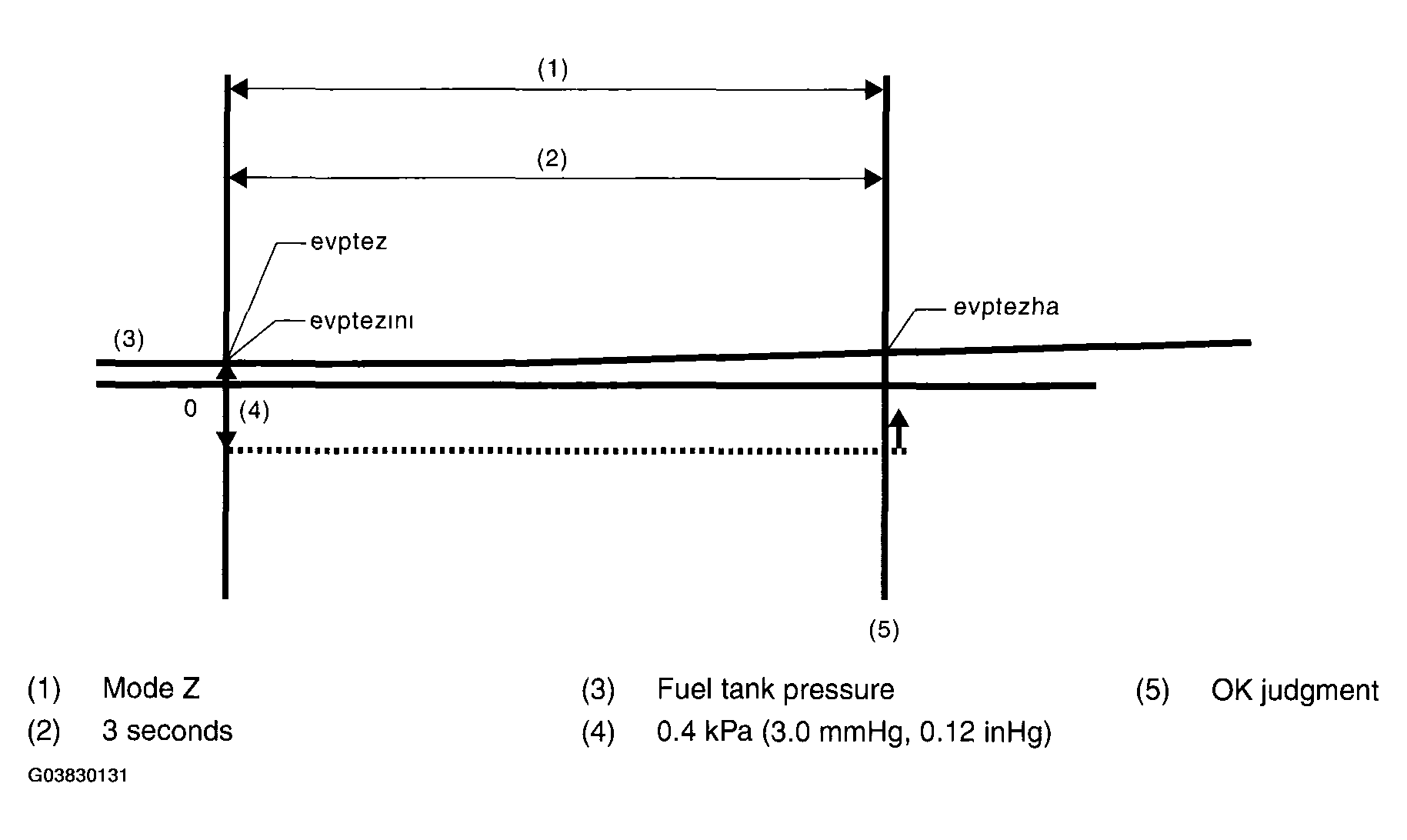

Fig 1: Operation Chart

Courtesy of SUBARU OF AMERICA, INC.

• evptez - evptezha </= 0.4 kPa (3.0 mmHg, 0.12 inHg)
• evptezini - evptezha </= 0.4 kPa (3.0 mmHg, 0.12 inHg)

Judge normal when both calculation is completed.
