Keyless Entry Control Module

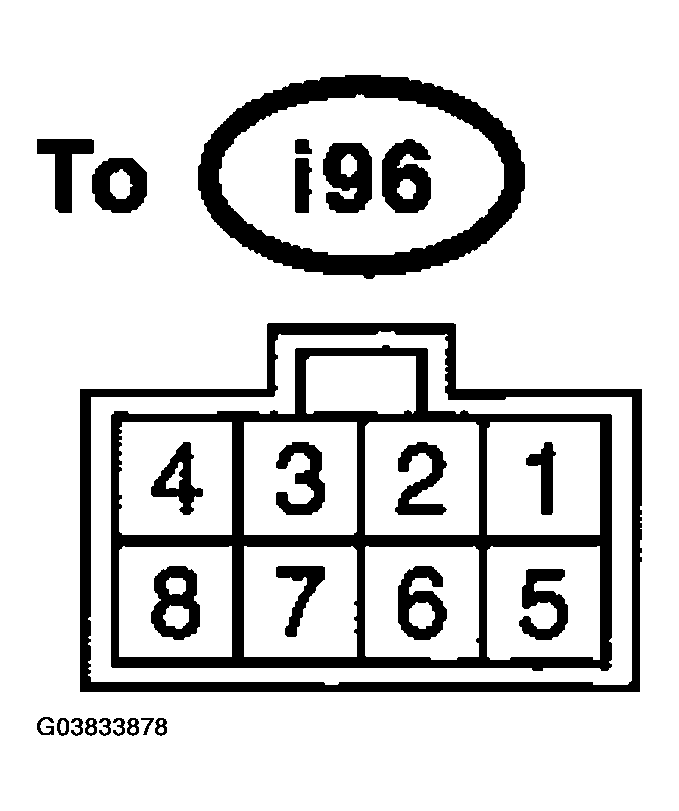

Fig 1: Identifying Keyless Entry Control Module Terminal
G03833878Courtesy of SUBARU OF AMERICA, INC.
MEASURING CONDITIONS

Remarks Terminal No. Measuring conditions
Body integrated unit 3 (OUTPUT) Battery voltage cannot be measured because of digital signal.
Power supply (Backup) 4 Battery voltage is constantly present.
Ground 7 0 V is constantly present.
