Transmission Control Module

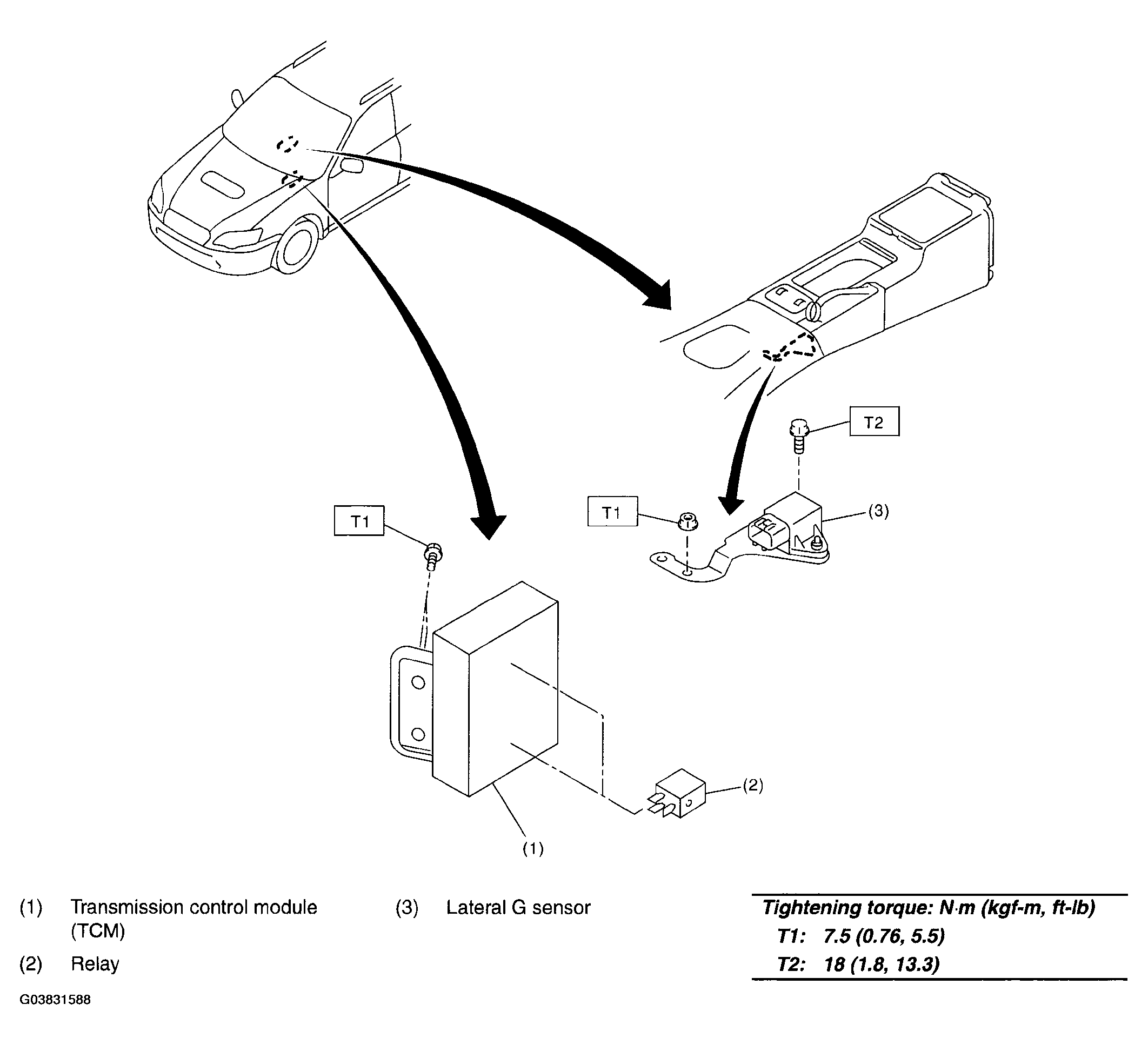

Fig 1: Transmission Control Module, Relay & Lateral G Sensor With Torque Specifications
G03831588Courtesy of SUBARU OF AMERICA, INC.
