DTC P0122 Throttle/Pedal Position Sensor/Switch "A" Circuit Low Input

DTC DETECTING CONDITION:

Detect as soon as the malfunction occurs.
GENERAL DESCRIPTION < Ref. to DTC P0122 THROTTLE/PEDAL POSITION SENSOR/SWITCH "A" CIRCUIT LOW INPUT , Diagnostic Trouble Code (DTC) Detecting Criteria. >

TROUBLE SYMPTOM:

Erroneous idling
Engine stalls.
Poor driving performance

WIRING DIAGRAM:

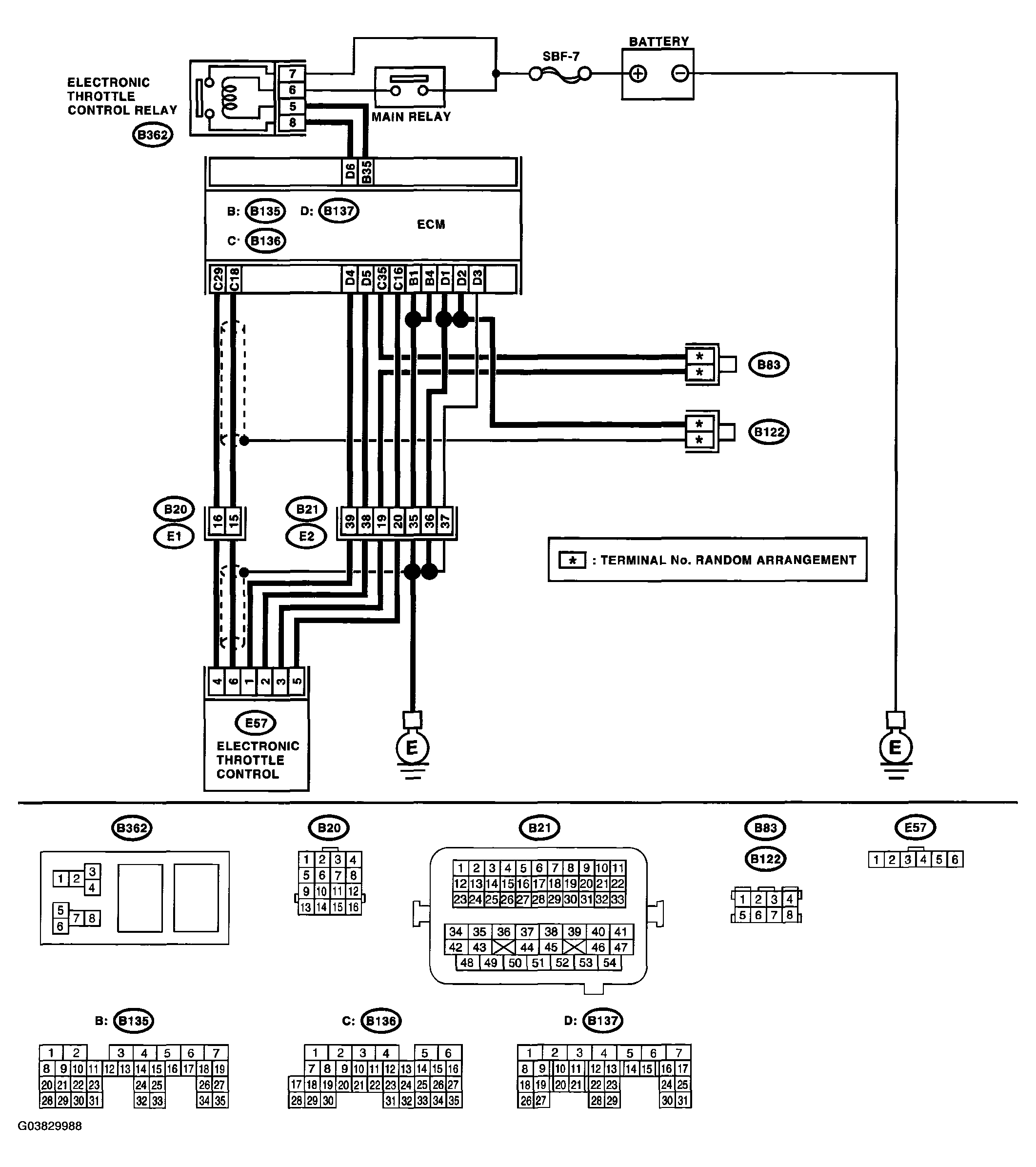

Fig 1: Wiring Diagram - DTC P0122 Throttle/Pedal Position Sensor/Switch "A" Circuit Low Input

G03829988

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE (DTC P0122)

Step		Check	Yes	No
1 CHECK SENSOR OUTPUT. Turn the ignition switch to ON. Read the data of main throttle sensor signal using Subaru Select Monitor or OBD-II general scan tool. NOTE: Subaru Select Monitor For detailed operation procedure, refer to the "READ CURRENT DATA FOR ENGINE". < Ref. to , SUBARU SELECT MONITOR . >		Is the voltage more than 0.4 V?	Go to step 2.	Go to step 3.
2 CHECK POOR CONTACT. Check the poor contact in connector between ECM and electronic throttle control.		Is there poor contact in connector between ECM and electronic throttle control?	Repair the poor contact.	Temporary poor contact occurred, but it is normal at present.
3 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL. Turn the ignition switch to OFF. Disconnect the connector from ECM. Disconnect the connectors from the electronic throttle control control. Measure the resistance between ECM connector and electronic throttle control connector. Connector & terminal (B136) No. 16 - (E57) No. 5: B136 No. 18 - (E57) No. 6:		Is the resistance less than 1 ?	Go to step 4.	Repair the open circuit of harness connector.
4 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL. Measure the resistance between ECM connector and chassis ground. Connector & terminal (B136) No. 18 - Chassis ground: (B136) No. 16 - Chassis ground:		Is the resistance more than 1 M?	Go to step 5.	Repair the chassis short circuit of harness.
5 CHECK POWER SUPPLY OF ELECTRONIC THROTTLE CONTROL. Connect the ECM connector. Turn the ignition switch to ON. Measure the voltage between electronic throttle control connector and engine ground. Connector & terminal (E57) No. 5 (+) - Engine ground (-):		Is the voltage 4.5 - 5.5 V?	Go to step 6.	Repair the poor contact in ECM connector. Replace the ECM if defective. < Ref. to ENGINE CONTROL MODULE (ECM) . >
6 CHECK SHORT CIRCUIT INSIDE THE ECM. Turn the ignition switch to OFF. Measure the resistance between electronic throttle control connector and engine ground. Connector & terminal (E57) No. 6 - Engine ground:		Is the resistance more than 10 ?	Repair the poor contact of electronic throttle control connector. Replace the electronic throttle control if defective.	Repair the poor contact in ECM connector. Replace the ECM if defective. < Ref. to ENGINE CONTROL MODULE (ECM) . >
