Tire Pressure Monitoring Control Module

  1. Remove the driver's seat. < Ref. to REMOVAL , Front Seat. >
  2. Turn up the floor mat in the driver's seat area.
  3. Remove the connector to remove tire pressure monitoring control module.

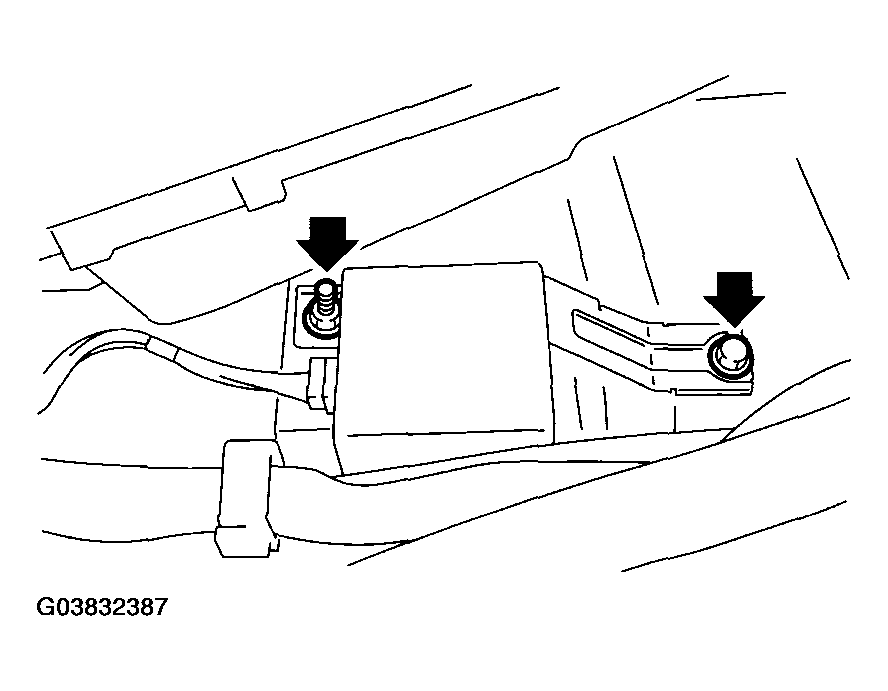

    Fig 1: Removing Tire Pressure Monitoring Control Module
    G03832387Courtesy of SUBARU OF AMERICA, INC.
