Components With Torque Specifications: Generator

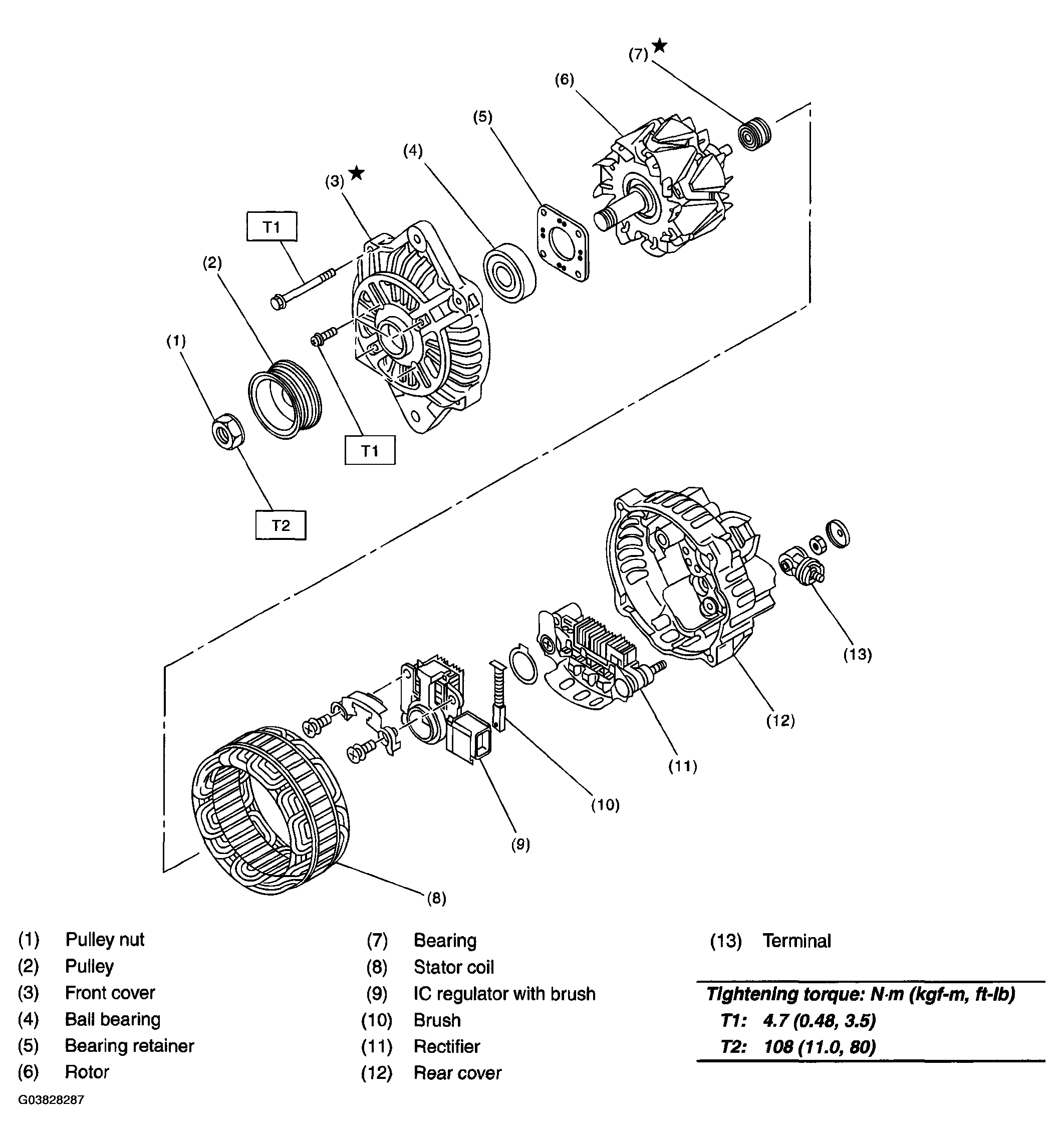

Fig 1: Generator Components With Torque Specifications
G03828287Courtesy of SUBARU OF AMERICA, INC.
