Purge Control Solenoid Valve Open Fixation

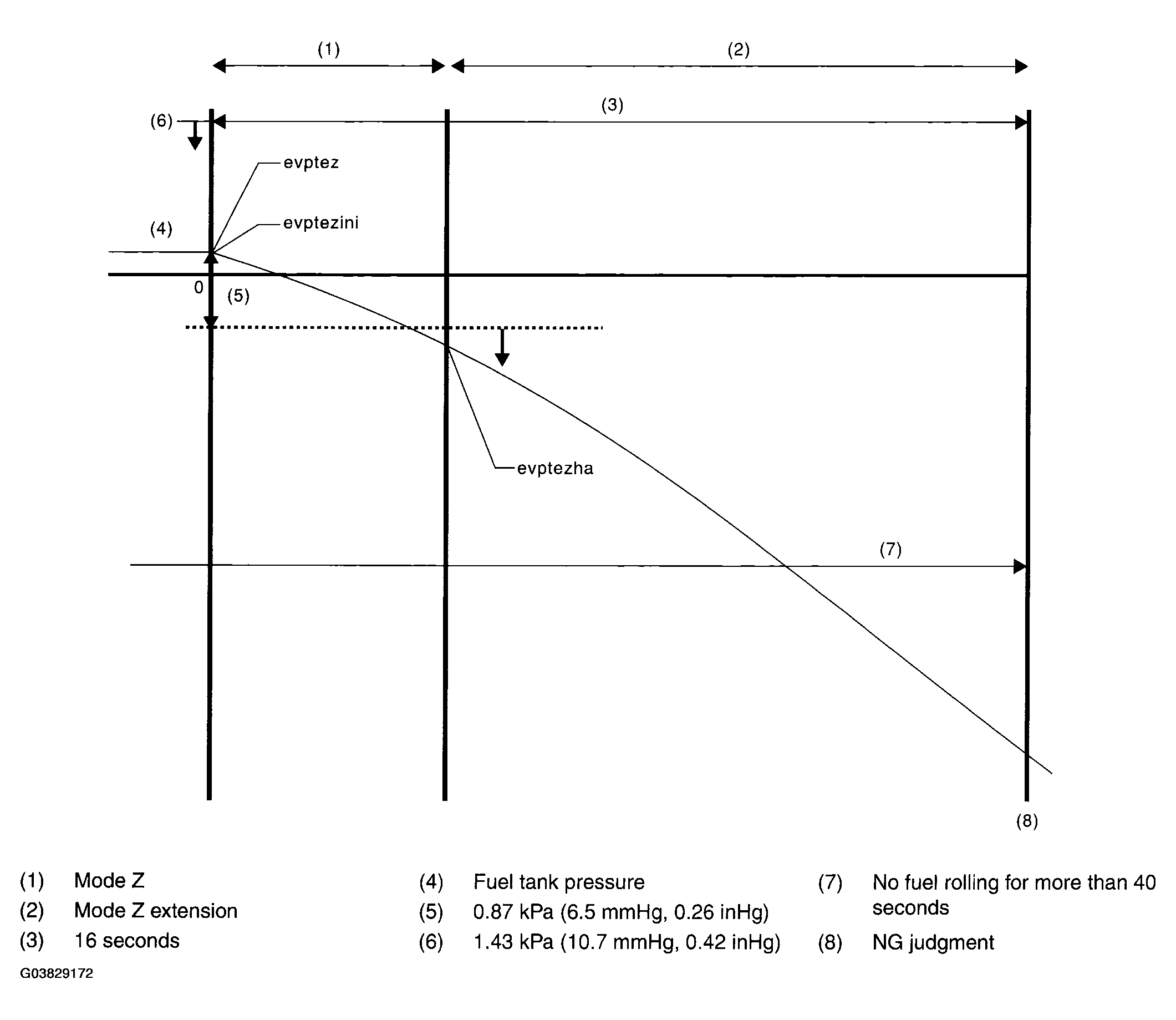

Fig 1: Purge Control Solenoid Valve Open Fixation Graph

Courtesy of SUBARU OF AMERICA, INC.

• evptezini, evptez </= 1.43 kPa (10.7 mmHg, 0.42 inHg)
• evptez - evptezha </= 0.87 kPa (6.5 mmHg, 0.26 inHg)
• evptezini - evptezha </=.87 kPa (6.5 mmHg, 0.26 inHg)
• No fuel rolling of above 2 Lambda (0.79 US gal, 0.67 Imp gal) for more than 40 seconds.

Judge normal when all calculations are completed.
