720° Interval Difference Method

Diagnosis value domg 720 = (omg 1 - omg 0) - (omg 7 - omg 6)

Misfire judgment domg 720 > judgment value --> Misfire occurs

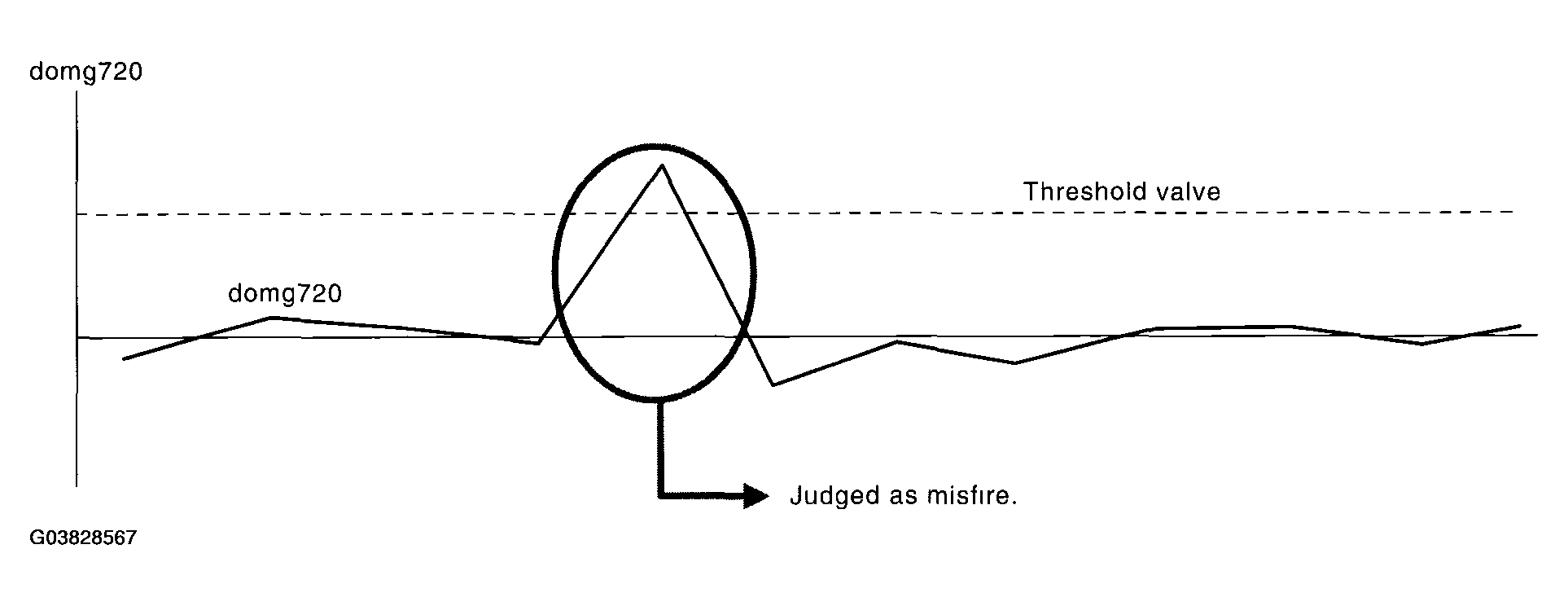

Fig 1: Identifying 720° Interval Difference Method
G03828567Courtesy of SUBARU OF AMERICA, INC.
