Diagnostic method: Overview

CPC open fixation diagnosis are performed in mode Z as shown in Fig 1 .

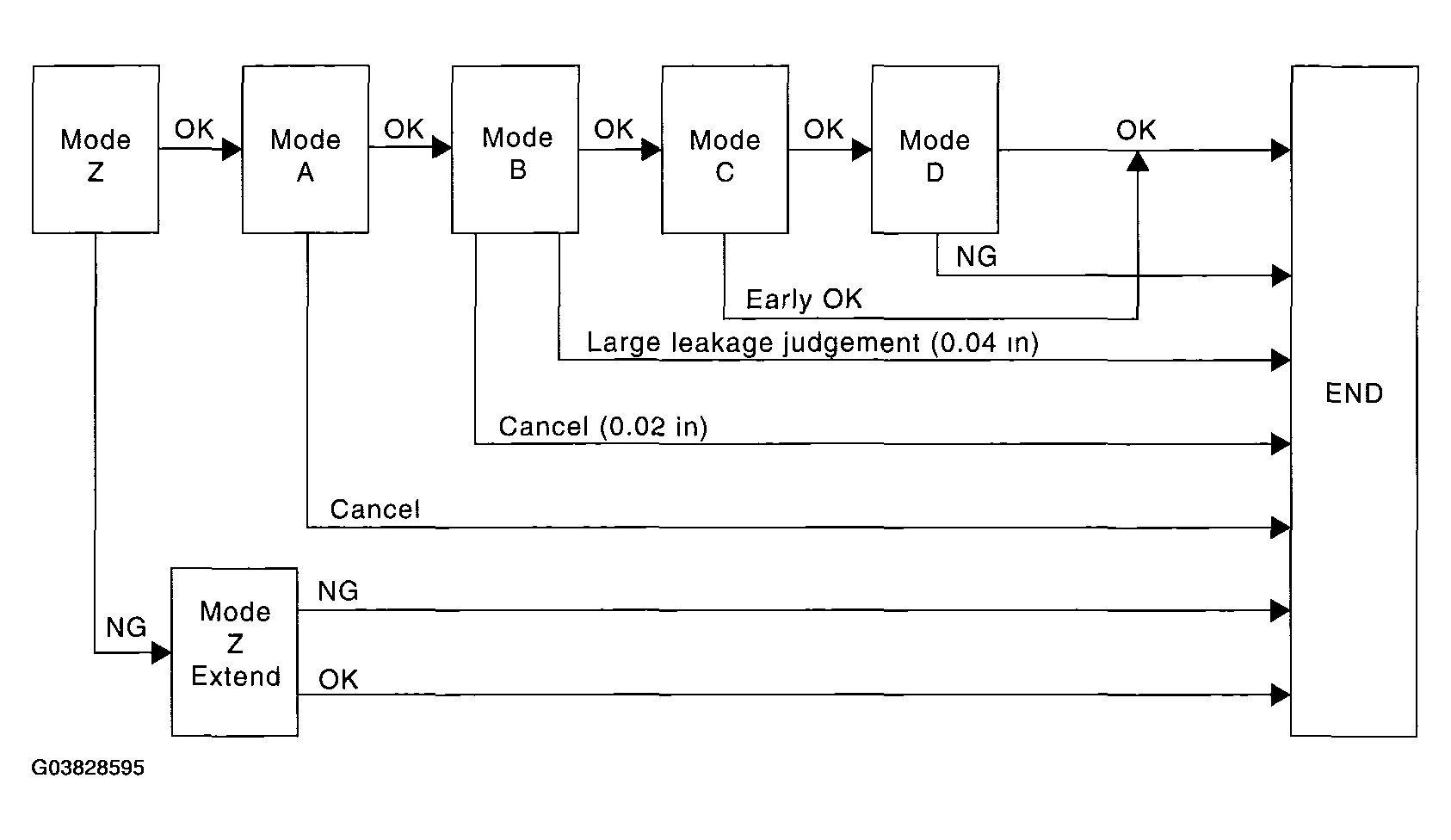

Fig 1: Purge Control Solenoid Valve CPC Open Fixation Diagnosis

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Purge Control Solenoid Valve Diagnosis Chart

Courtesy of SUBARU OF AMERICA, INC.
