Fuel Tank Sensor Control Valve

One of the fuel tank sensor control valve is connected to fuel tank pressure sensor and the other is released to atmosphere. The passage to fuel tank pressure sensor is usually released to atmosphere because the solenoid is set to OFF, but the solenoid is set to ON at diagnosis and the passage open to atmosphere can be closed.

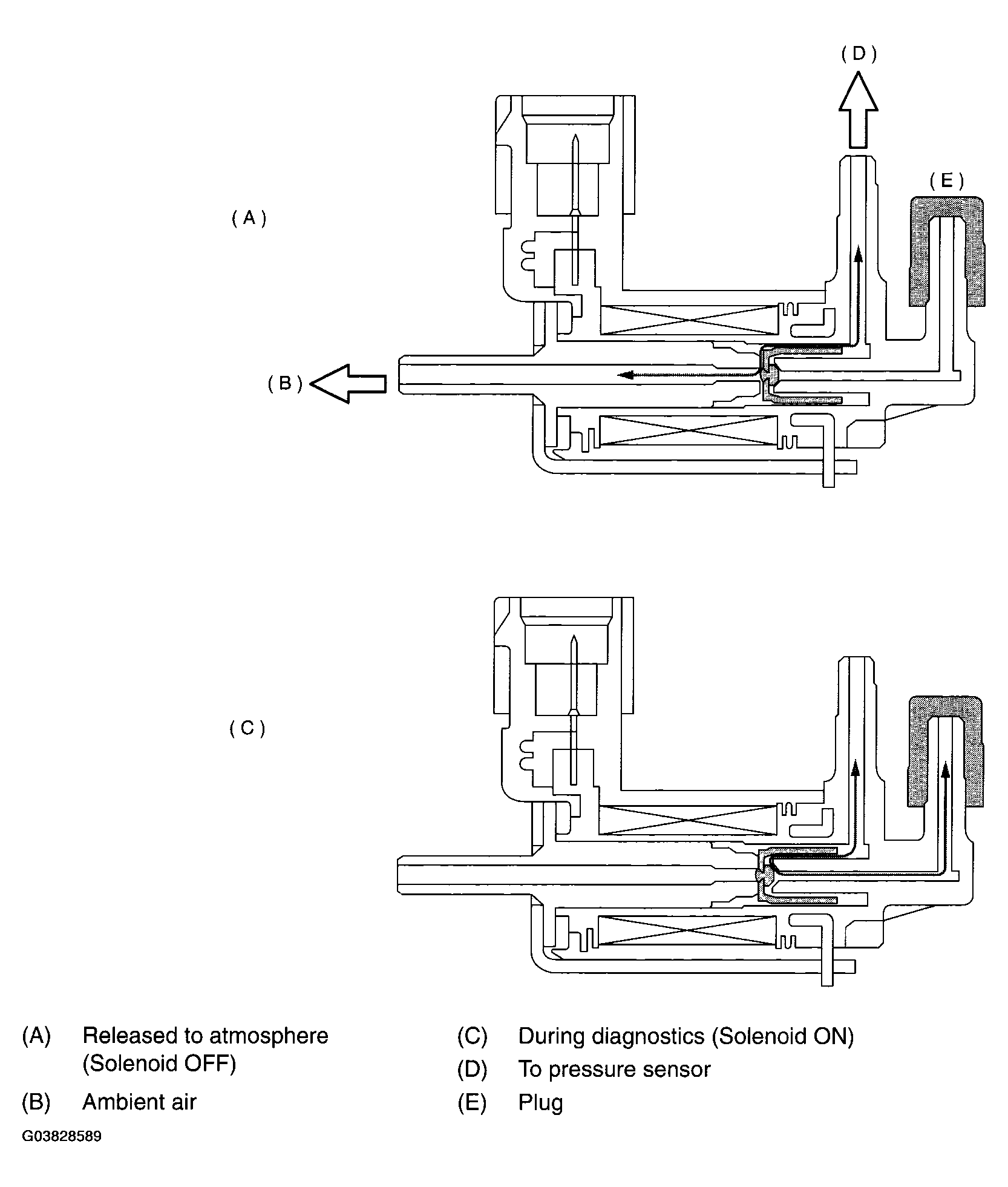

Fig 1: Cross-Sectional View Of Fuel Tank Sensor Control Valve
G03828589Courtesy of SUBARU OF AMERICA, INC.
