Differential Case Assembly

Remove taper roller bearing using ST and press.
ST 498077000 REMOVER

Fig 1: Removing Taper Roller Bearing Using ST And Press
Courtesy of SUBARU OF AMERICA, INC.

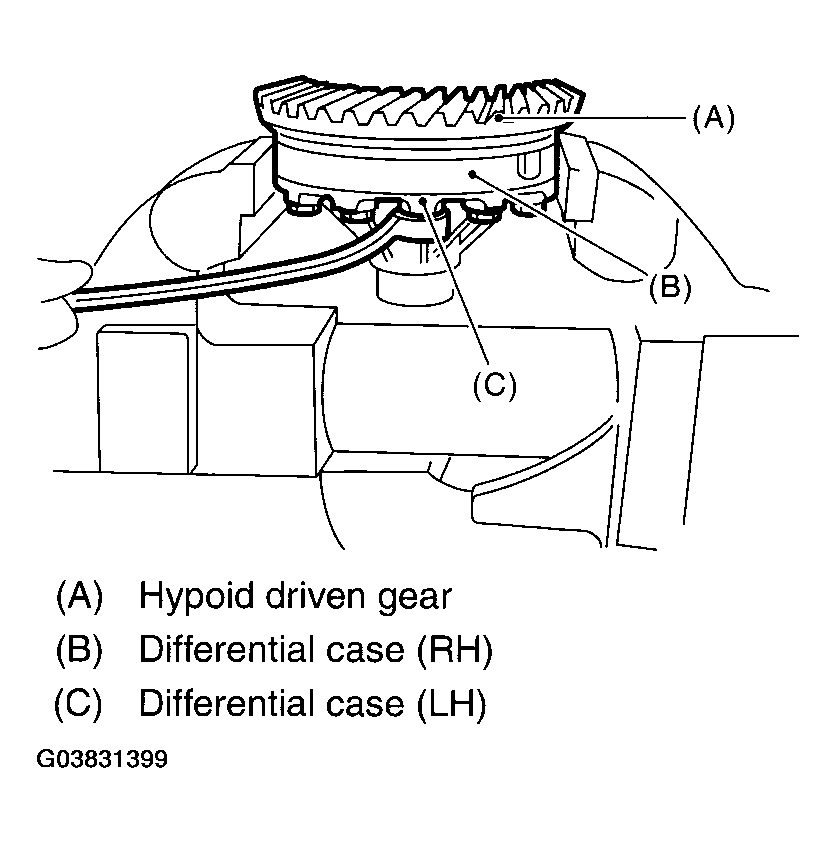

Secure the case in a vise and remove the hypoid driven gear tightening bolts, then separate the hypoid driven gear, case (RH) and case (LH).

Fig 2: Removing Hypoid Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Pull out the straight pin and shaft, and then remove the differential bevel gear, washer and differential bevel pinion.

Fig 3: Removing Differential Bevel Gear
Courtesy of SUBARU OF AMERICA, INC.
