Transfer And Extension Case

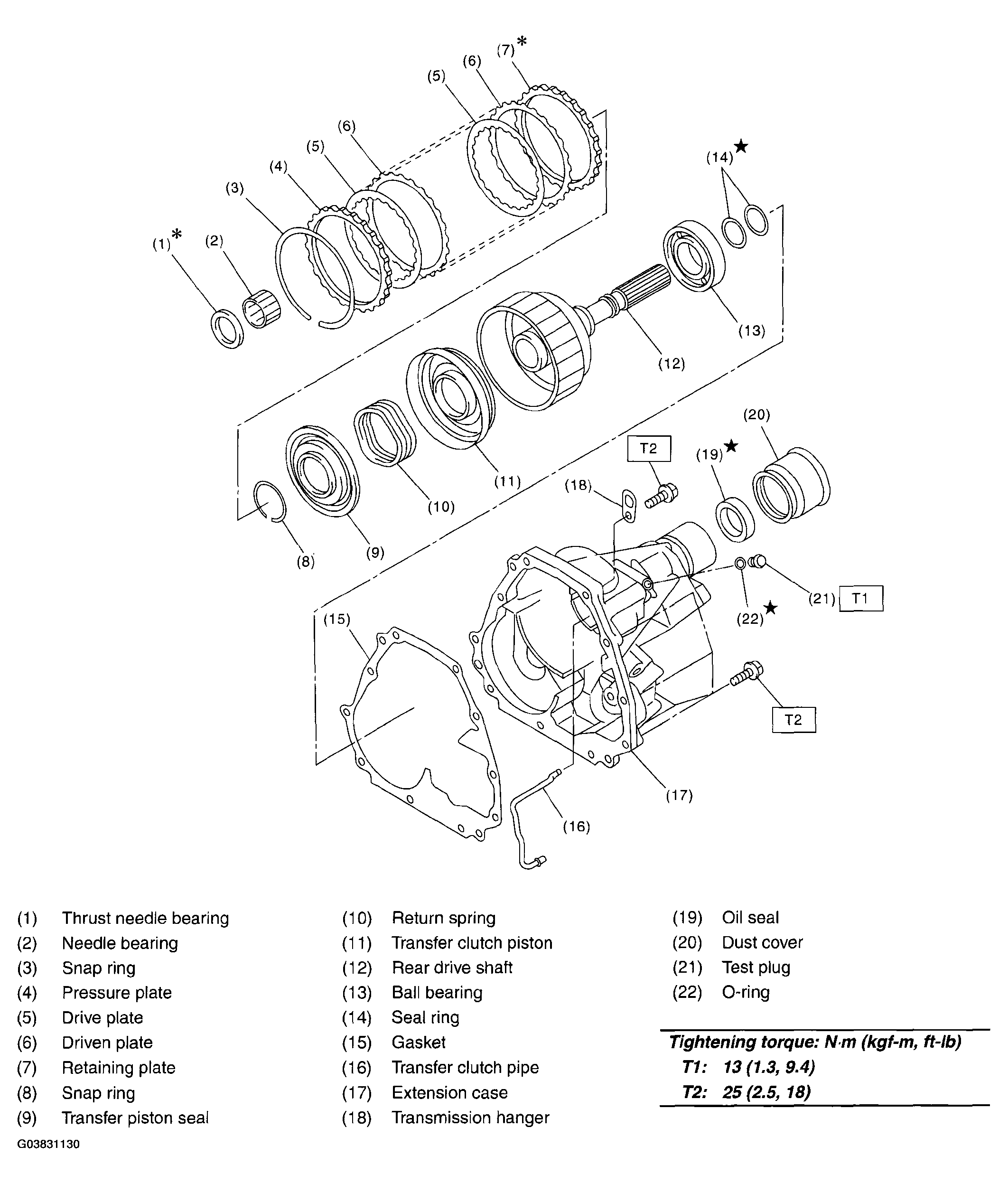

Fig 1: Exploded View Of Transfer And Extension Case Components With Torque Specifications
G03831130Courtesy of SUBARU OF AMERICA, INC.
