Transmission Mounting

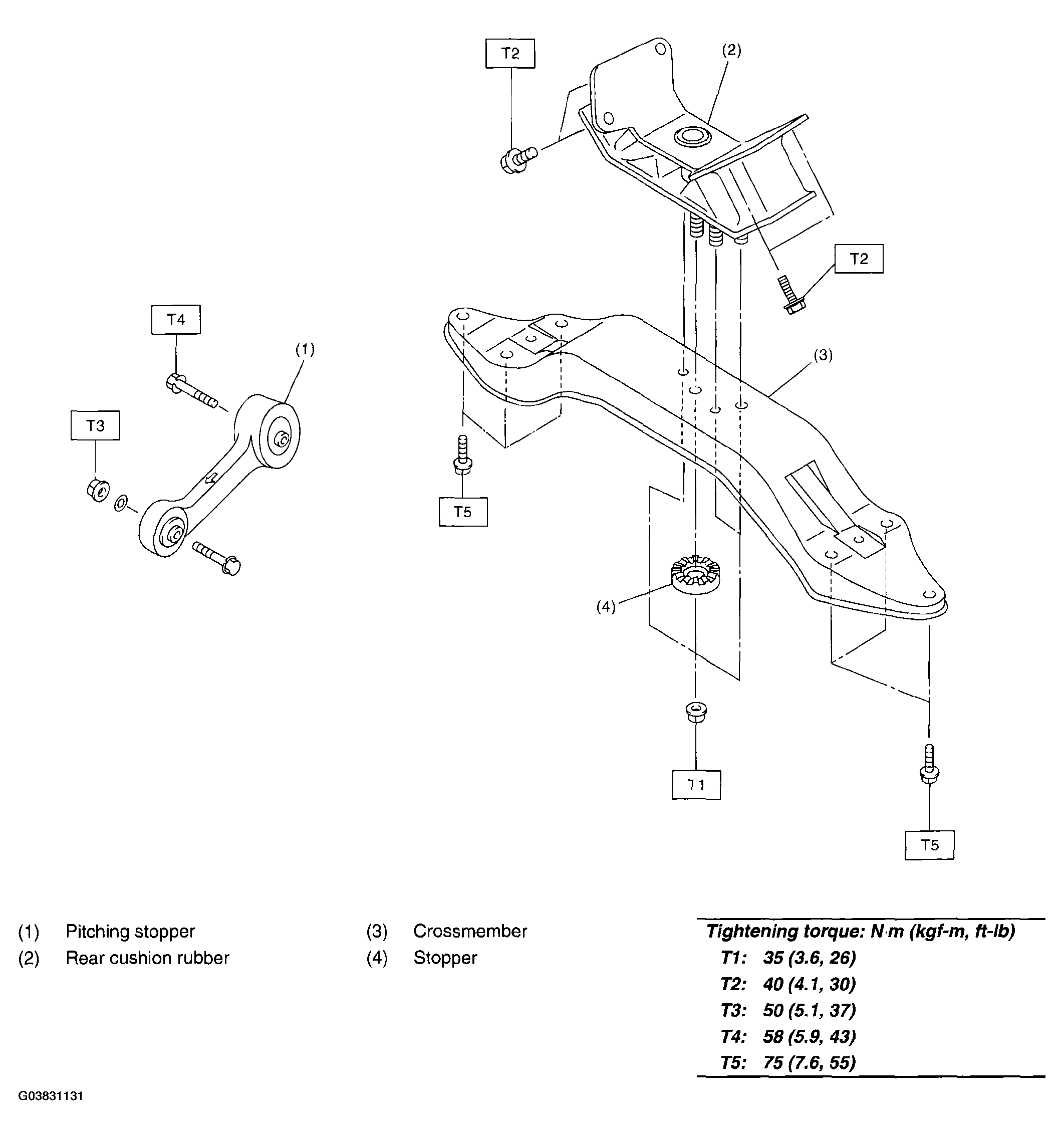

Fig 1: Transmission Mounting Replacement Components With Torque Specifications
G03831131Courtesy of SUBARU OF AMERICA, INC.
