Torque Converter Assembly: Installation

Install the shaft to the converter case when oil pump shaft is removed.
Install the oil pump shaft to torque converter assembly, and then make sure that the clip is secured on groove.
Apply ATF to O-ring and insert the input shaft with rotating it by hand lightly.
Normal protrusion A:

50 - 55 mm (1.97 - 2.17 in)

Fig 1: Installing Input Shaft
Courtesy of SUBARU OF AMERICA, INC.
With holding the torque converter assembly by hands, carefully install to the converter case. Take care not to damage the bushing. Do not contact the oil pump shaft bush with starter shaft part of oil pump cover inappropriately.
Lightly rotating the shaft by hands to engage the spline securely, and then check it is within the dimension A.
Dimension A:

2.7 -2.9mm (0.106-0.114 in)

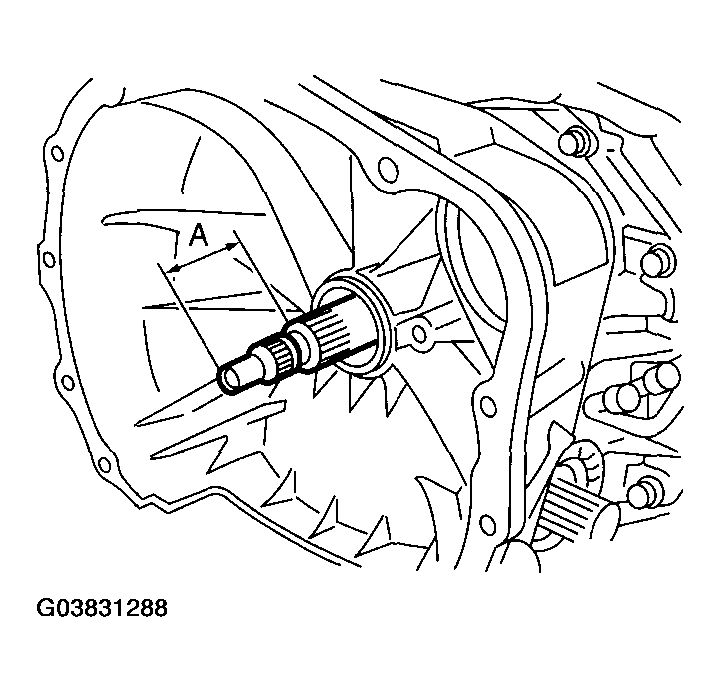

Fig 2: Identifying Dimension
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly into vehicle. < Ref. to , INSTALLATION , Automatic Transmission Assembly. >
