Diagnostic method: Overview

CPC open fixation diagnosis are performed in mode Z as shown in Fig 2 & Fig 1 .

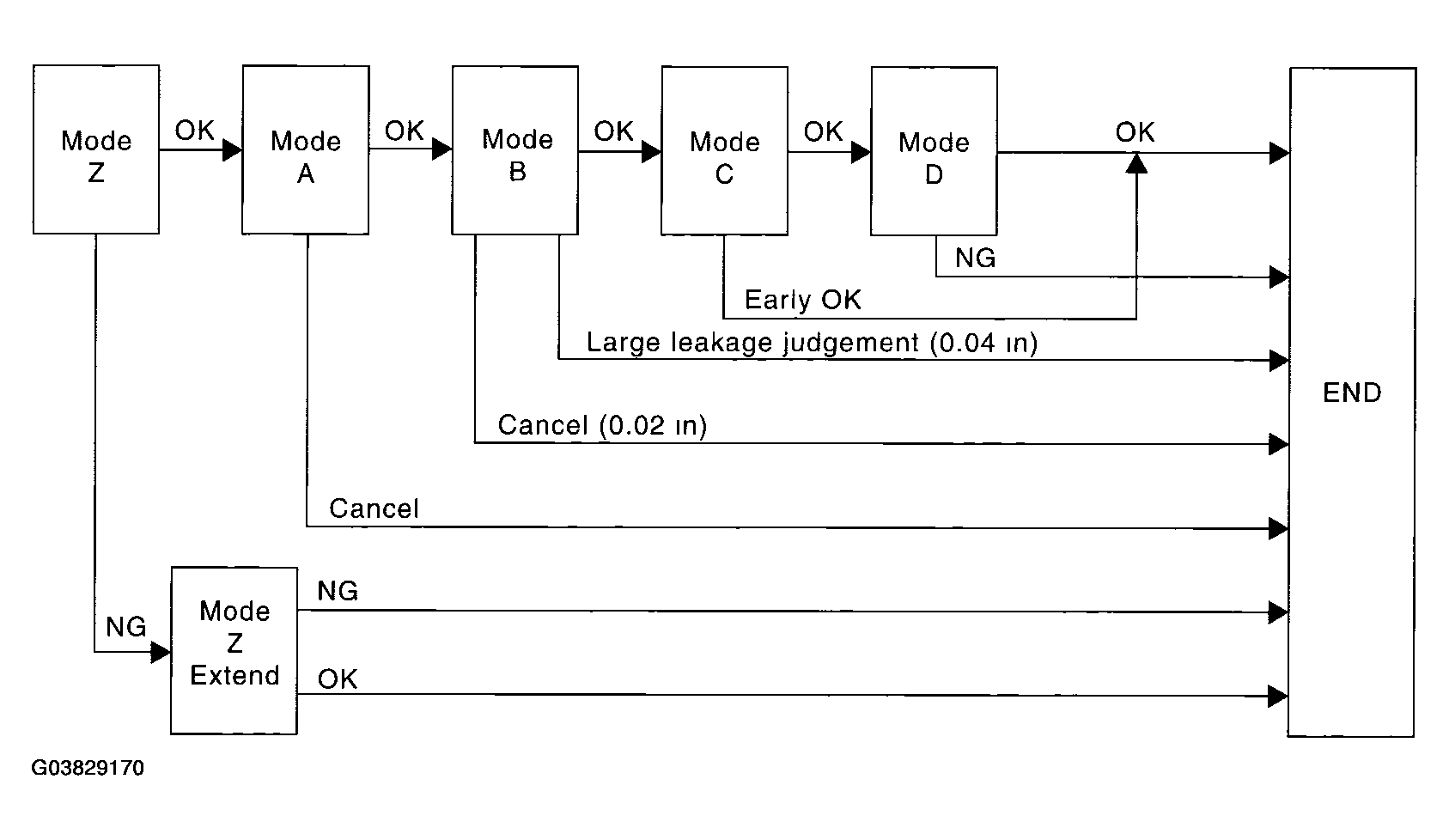

Fig 1: Identifying Purge Control Solenoid Valve Open Fixation Diagnosis Is Performed In Mode Z

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Purge Control Solenoid Valve Diagnosing Function Chart (P0457)

Courtesy of SUBARU OF AMERICA, INC.
