Removal and Installation

REMOVAL

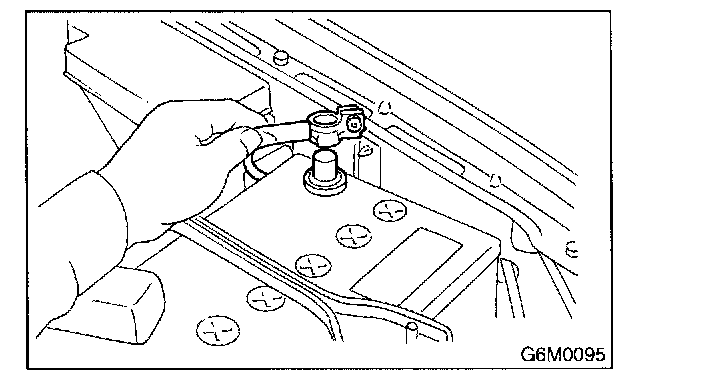

1. Disconnect the ground cable from battery.

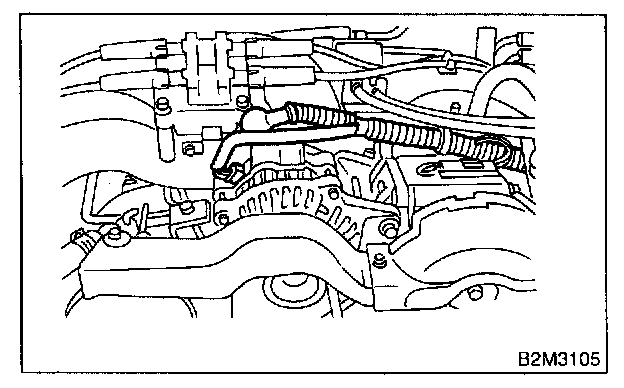

2. Disconnect the connector and terminal from generator.

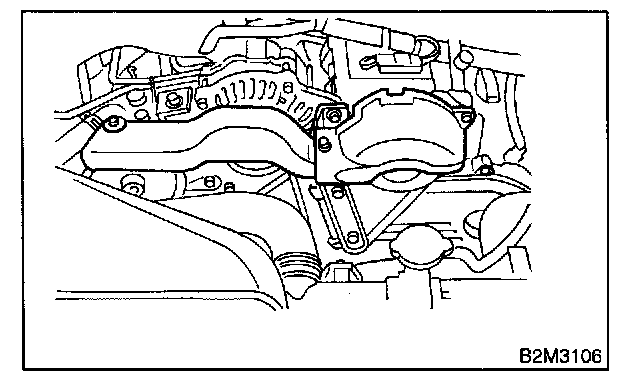

3. Remove the V-belt cover.
4. Remove the front side V-belt.

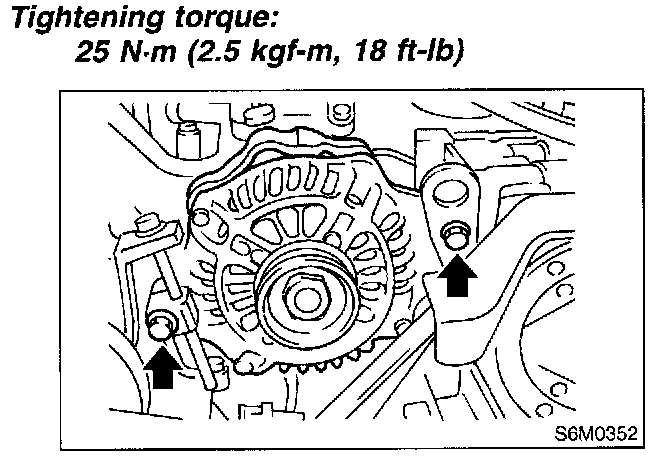

5. Remove the bolts which install generator onto bracket.

INSTALLATION

Install in the reverse order of removal.

CAUTION: Check and adjust the V-belt tension.
