Abs Control Module And Hydraulic Control Unit (ABSCM&H/U)

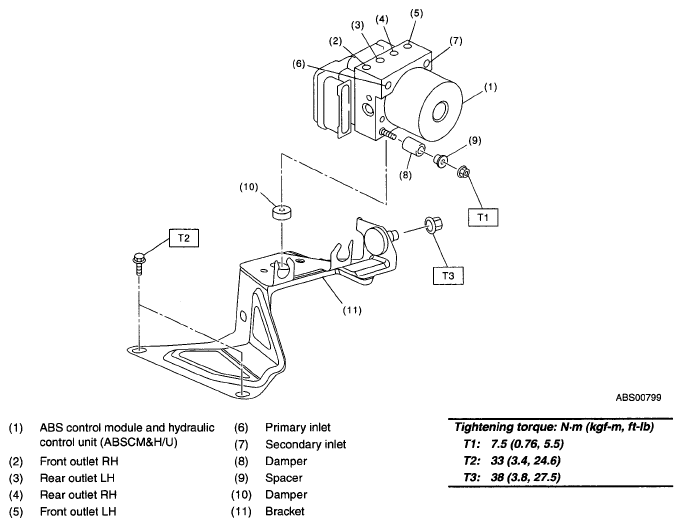

Fig 1: ABS Control Module And Hydraulic Control Unit And Torque Specifications (ABSCM&H/U)
G04994782Courtesy of SUBARU OF AMERICA, INC.
