Components With Torque Specifications: Sensor

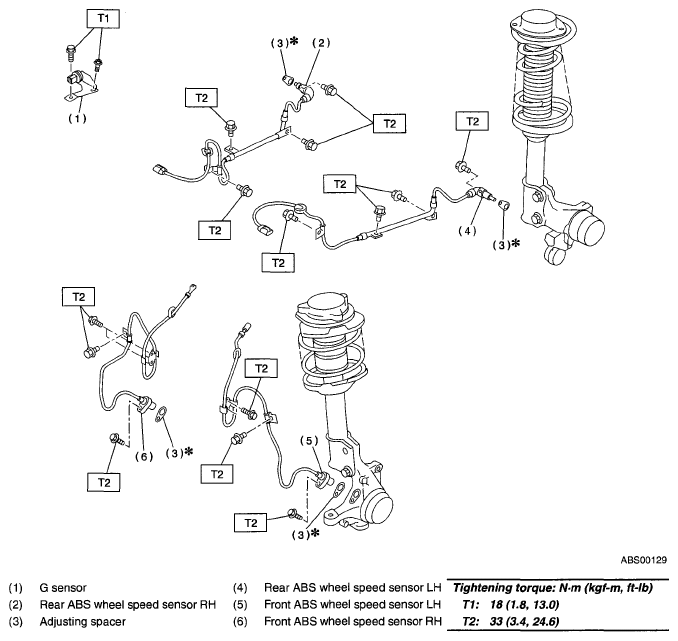

Fig 1: Sensor Replacement Components With Torque Specifications
G04994781Courtesy of SUBARU OF AMERICA, INC.
