Control Unit (Auto A/C Model)

Control Unit (Auto A/C Model)

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the glove box.

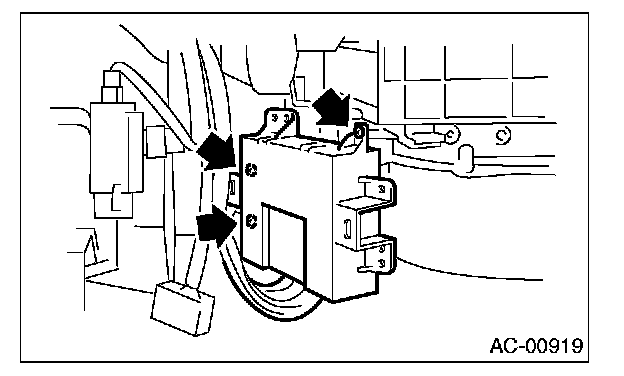

3. Remove the screw, disconnect the connector and remove the control unit.

INSTALLATION
Install in the reverse order of removal.
