Transmission Control Module

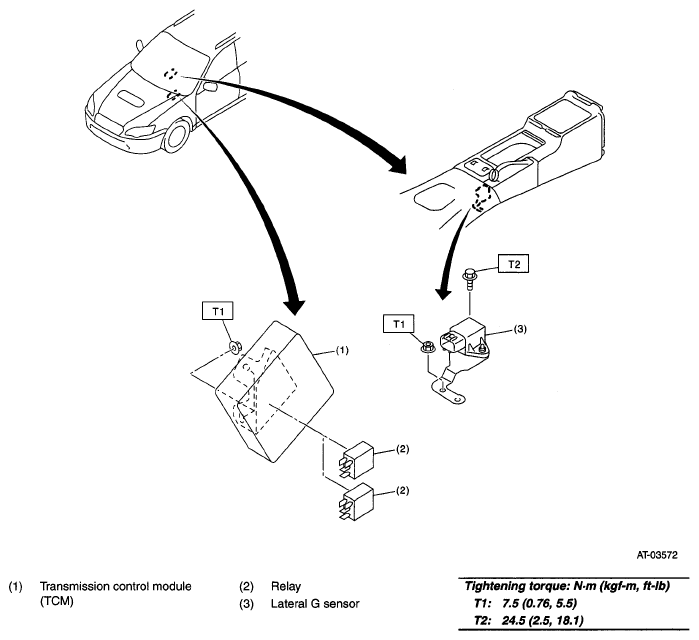

Fig 1: Transmission Control Module With Torque Specifications

G05022137
