Seat Belt Systems: Specifications

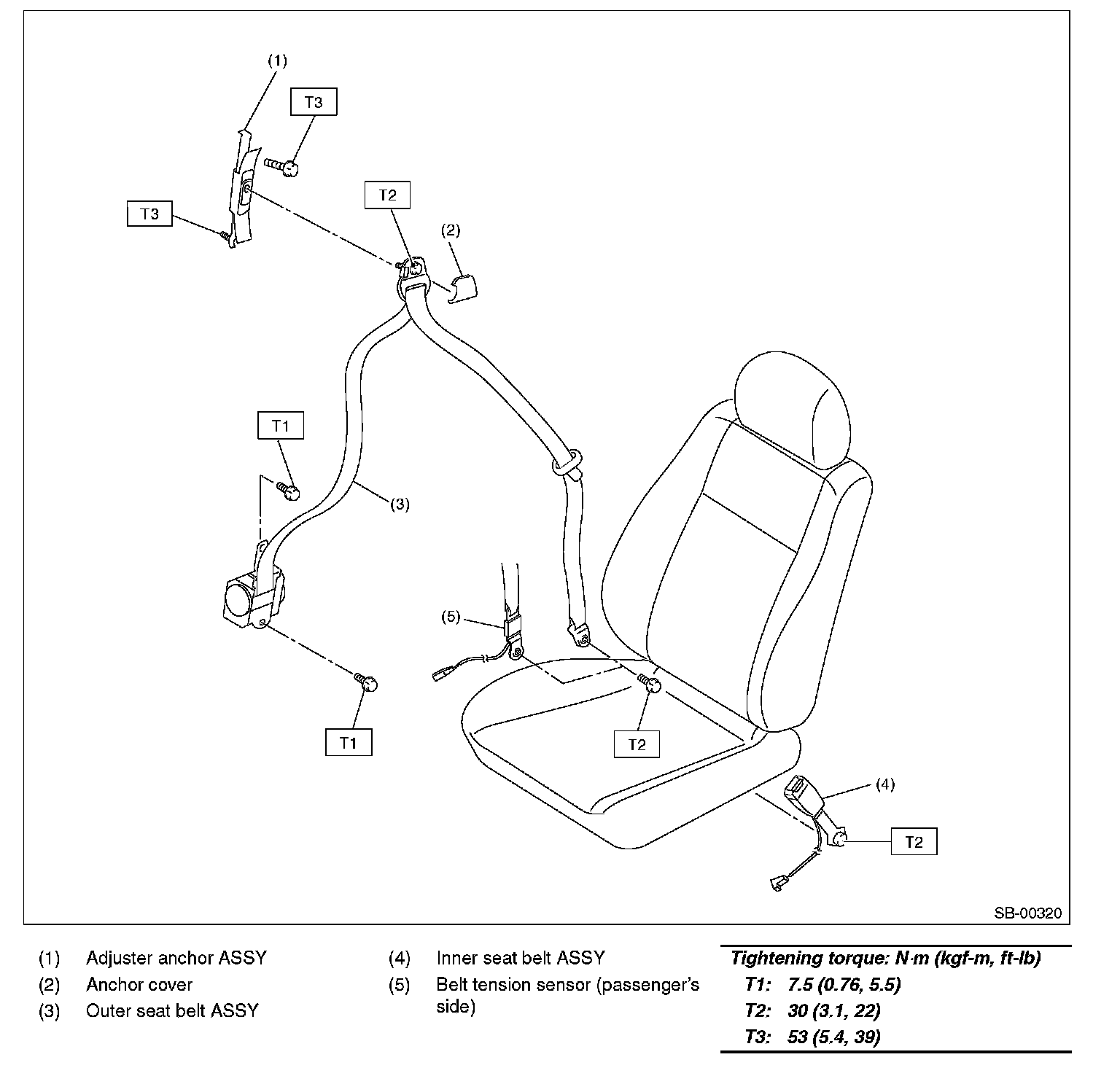

Front Seat Belt:

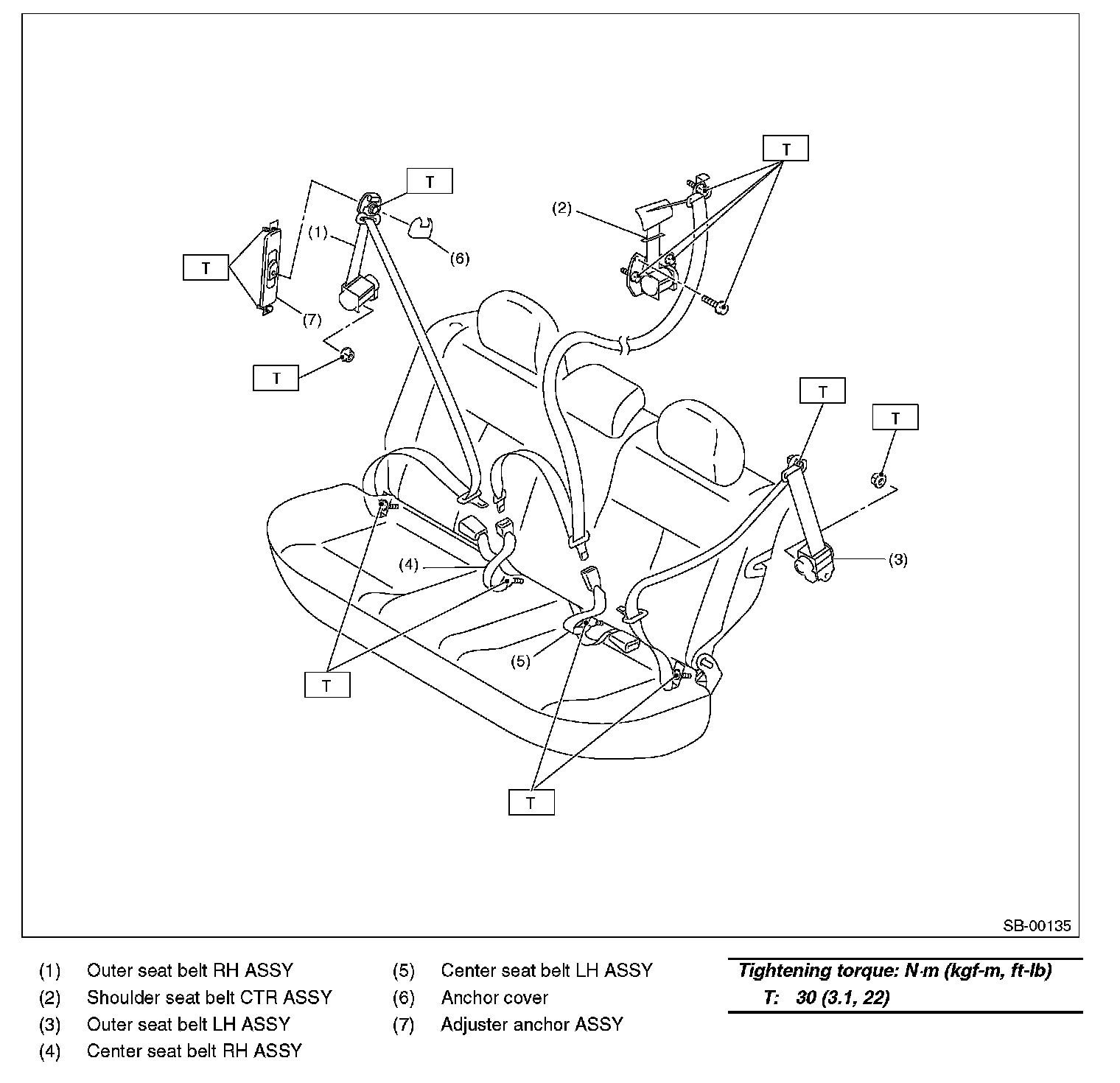

Rear Seat Belt (Sedan Model):

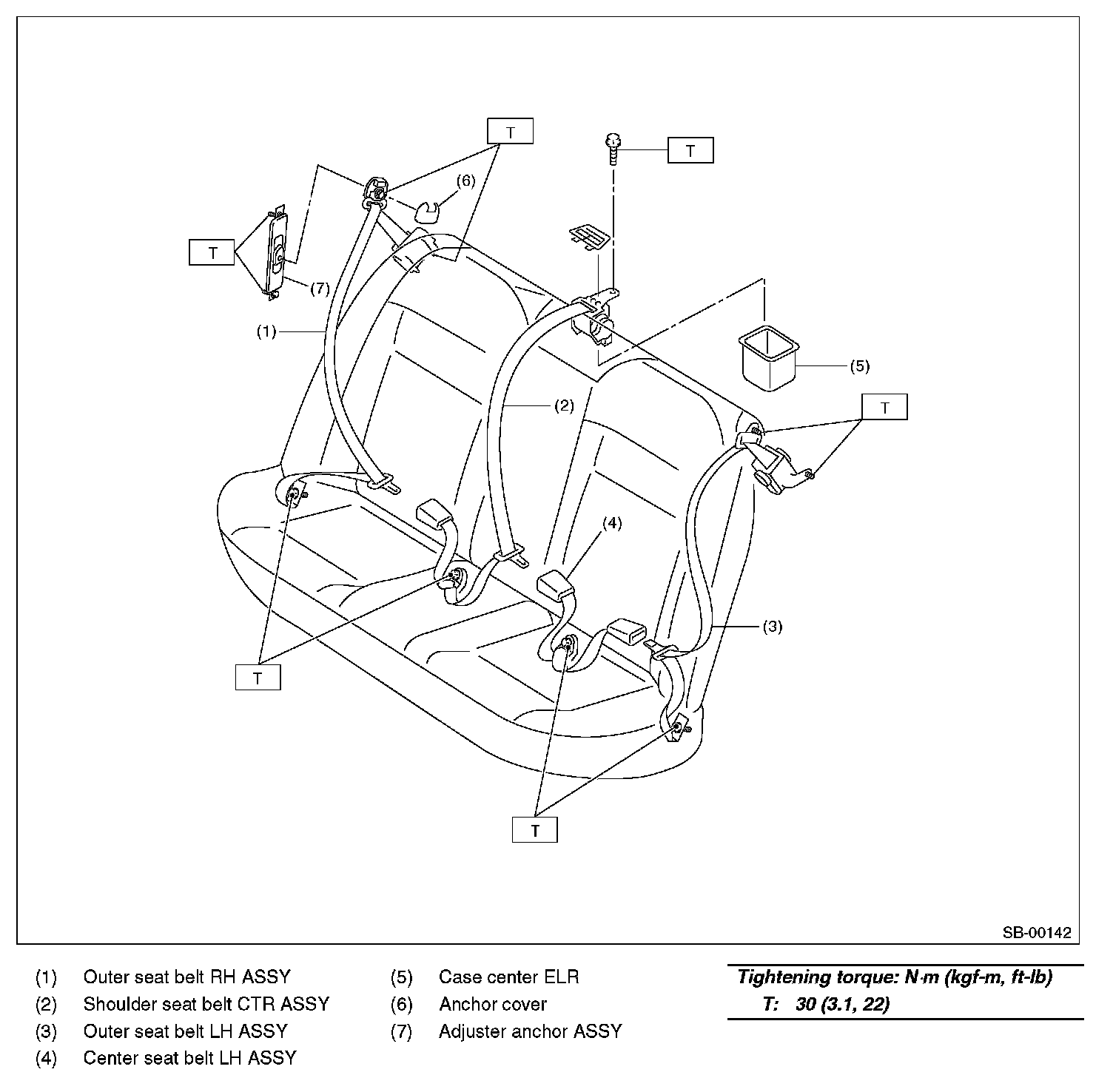

Rear Seat Belt (Wagon Model):
