Ignition Control Module: Testing and Inspection

INSPECTION




Check the following items using a tester. Replace if defective.

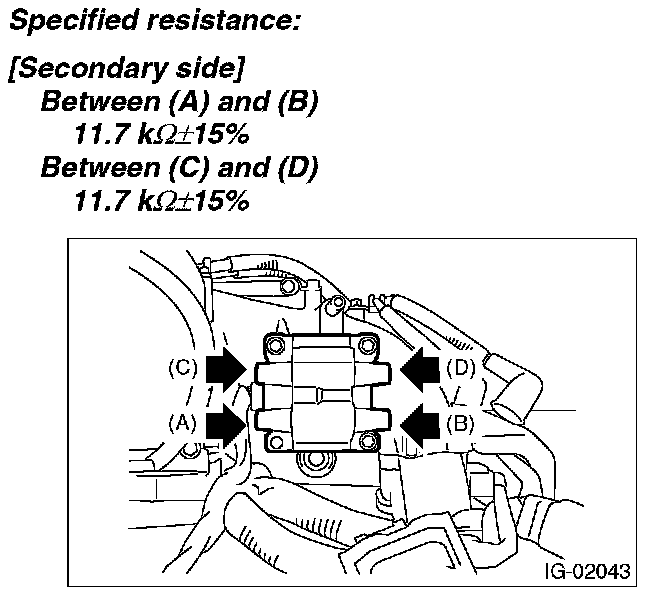

- Secondary coil resistance

CAUTION:
- If the resistance is extremely low, it indicates the presence of a short-circuit.
- Ignitor is integrated with the coil. Therefore the resistance of primary side coil cannot be measured.
