Rear Differential Member: Assembly

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install the dynamic damper to front differential member.
Tightening torque:

20 N.m (2.0 kgf-m, 14.5 ft-lb)
Temporarily tighten the connecting bolt (A) which secures front differential to differential mount.

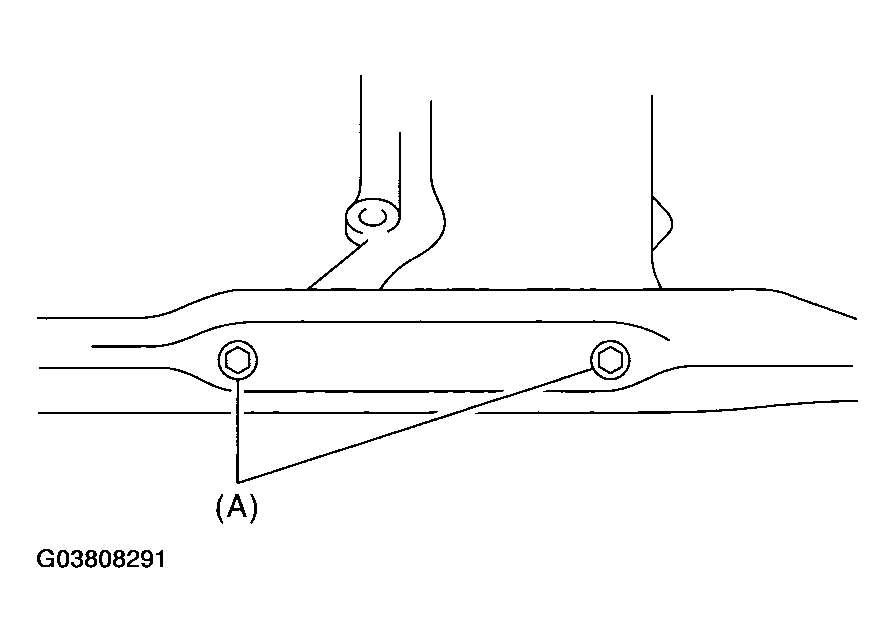

Fig 1: Tightening Connecting Bolt (A) Which Secures Front Differential To Differential Mount
Courtesy of SUBARU OF AMERICA, INC.
Tighten the nut of connecting bolt (B).
Tightening torque:

128 N.m (13.1 kgf-m, 94.4 ft-lb)

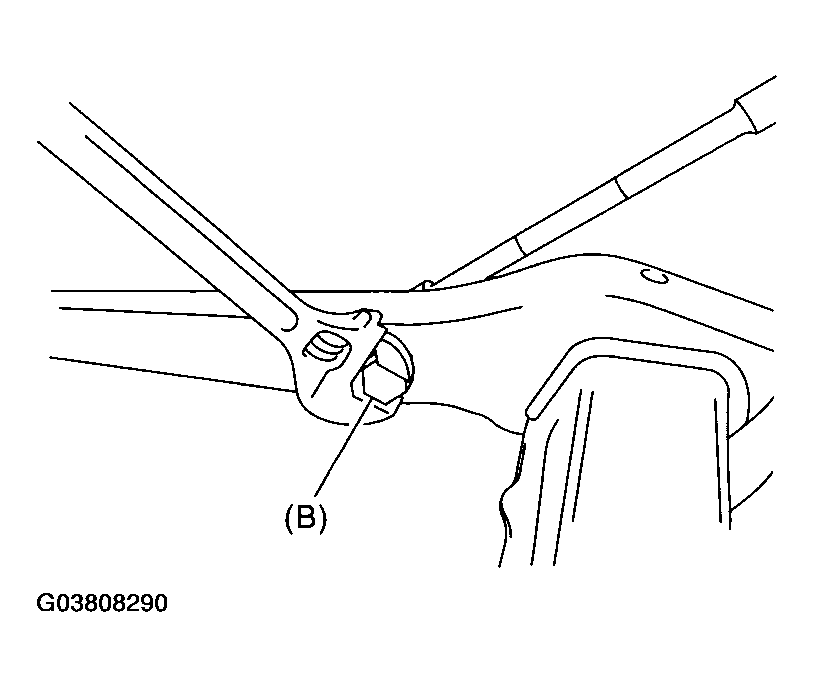

Fig 2: Tightening Nut Of Connecting Bolt (B)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the nut of connecting bolt (A).
Tightening torque:

70 N.m (7.1 kgf-m, 51.6 ft-lb)

Fig 3: Tightening Nut Of Connecting Bolt (A)
Courtesy of SUBARU OF AMERICA, INC.
