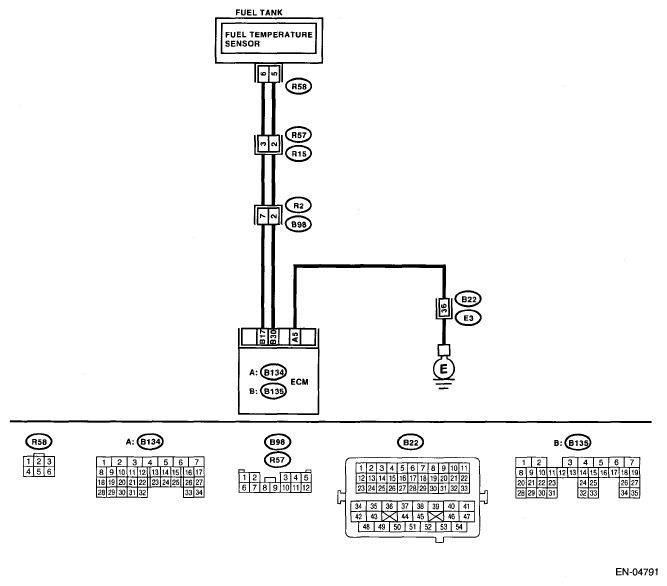

DTC P0182 Fuel Temperature Sensor "A" Circuit Low Input: Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC. DIAGNOSIS PROCEDURE CHART
| Step |
Check |
Yes |
No |
1 CHECK CURRENT DATA.
- Start the engine.
- Read the data of the fuel temperature sensor signal using the Subaru Select Monitor or general scan tool.
NOTE:
- Subaru Select Monitor
For detailed operation procedures, refer to "READ CURRENT DATA FOR ENGINE". <Ref. to
SUBARU SELECT MONITOR . >
- General scan tool
For detailed operation procedure, refer to the general scan tool operation manual .
|
Is the temperature 150°C (302°F) or more? |
Go to step 2. |
Even if the malfunction indicator light illuminates, the circuit has returned to a normal condition at this time. |
2 CHECK CURRENT DATA.
- Turn the ignition switch to OFF.
- Remove the access hole lid.
- Disconnect the connector from fuel pump.
- Turn the ignition switch to ON.
- Read data of the fuel temperature sensor signal using the Subaru Select Monitor or general scan tool.
NOTE:
- Subaru Select Monitor
For detailed operation procedure, refer to "READ CURRENT DATA FOR ENGINE". <Ref. to
SUBARU SELECT MONITOR . >
- General scan tool
For detailed operation procedure, refer to the general scan tool operation manual .
|
Is the temperature less than -40°C (-40°F)? |
Replace the fuel temperature sensor. <Ref.
FUEL TEMPERATURE SENSOR
Fuel Temperature Sensor. > |
Repair ground short circuit of harness between fuel pump and ECM connector. |
