Rear Gate Lock

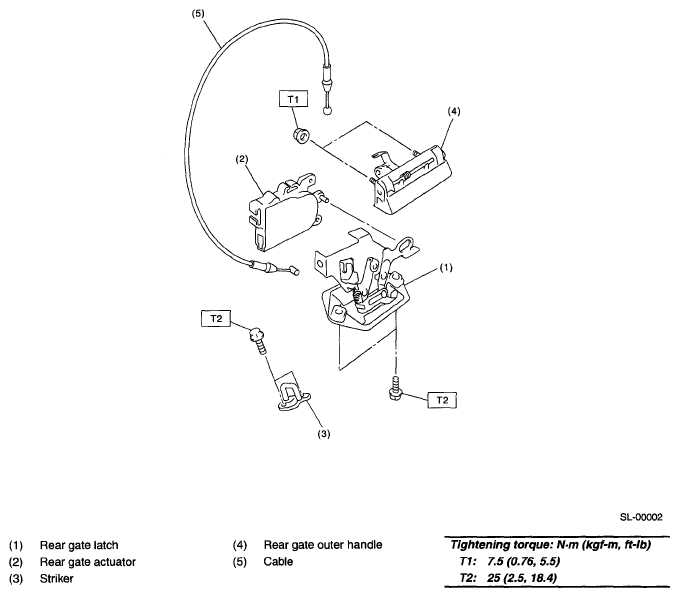

Fig 1: Rear Gate Lock Components With Torque Specifications
G04995502Courtesy of SUBARU OF AMERICA, INC.
