360° Interval Difference Method
DIAGNOSTIC VALUE
Diagnostic value
domg 360 = (omg 1 - omg 0) - (omg 4 - omg 3)
Misfire judgment
domg 360 > Judgment value → Judge as misfire

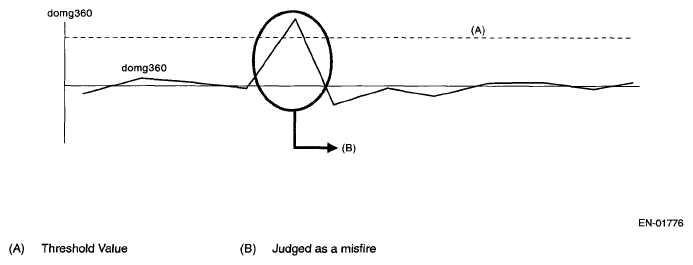

Fig 1: Crankshaft Position Sensor Threshold Value Graph (360°)
Courtesy of SUBARU OF AMERICA, INC.
