DTC P2127 Throttle/Pedal Position Sensor/Switch "E" Circuit Low Input: Wiring Diagram

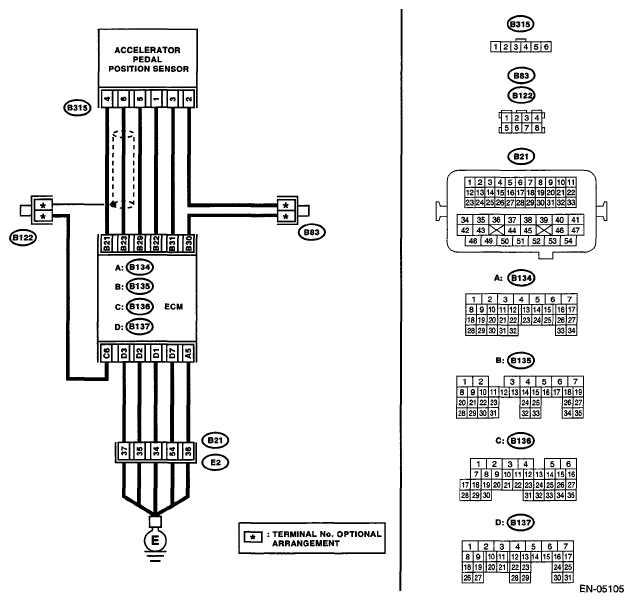

Fig 1: Throttle/Pedal Position Sensor/Switch - Wiring Diagram
G05340901Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC PROCEDURE CHART

Step Check Yes No
1 CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connector from the ECM and accelerator pedal position sensor.
  3. Measure the resistance between ECM and chassis ground.

    Connector & terminal

    (B135) No. 22 - Chassis ground:

    (B135) No. 31 - Chassis ground:

 Is the resistance 1 MΩ or more? Go to step 2.  Repair the ground short of the harness between the ECM and accelerator pedal position sensor connector.
2 CHECK SHORT CIRCUIT INSIDE THE ECM.
  1. Connect the connector to ECM.
  2. Measure the resistance between accelerator pedal position sensor connector and chassis ground.

    Connector & terminal

    (B315) No. 3 - Chassis ground:

 Is the resistance 1 MΩ or more? Replace the accelerator pedal. <Ref. to ACCELERATOR PEDAL . > Repair the ground short of the harness between the ECM and accelerator pedal position sensor connector. Replace the ECM if defective. <Ref. to ENGINE CONTROL MODULE (ECM) . >
